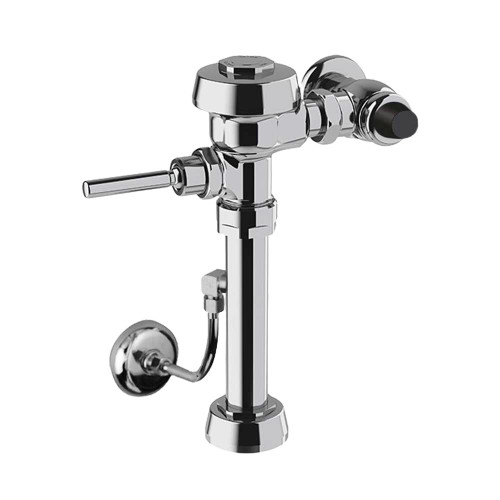

Sloan Royal exposed manual flushometer for water closets (toilets). Single Flush, 3.5 gallons per flush. Trap primer outlet tube refreshes floor drain trap keeping noxious oders from rising. Polished Chrome finish. ADA compliant, non-hold-open handle and no external volume adjustment to ensure intended flush volume.
1-1/2" Spud coupling and flush connection for 1-1/2" top spud toilet fixtures. 1" supply pipe. 1" Angle Control Stop. Adjustable tailpiece.
Valve type: Diaphragm with relief valve.
PERMEX synthetic rubber, dual filtered, fixed bypass diaphragm for improved life and lower maintenance. Choramine resistant. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Vacuum breaker flush connection
- 11-1/2" Rough-in
- 1” I.P.S. Screwdriver Bak-Chek Angle Control Stop with Free Spinning Vandal Resistant Stop Cap
Measurement Diagram:
Warnings:
- Specifications for Sloan 3010144 Flushometer
- Installation Guide for Sloan 3010144 Flushometer
- Parts guide for Exposed Royal Flushometers
