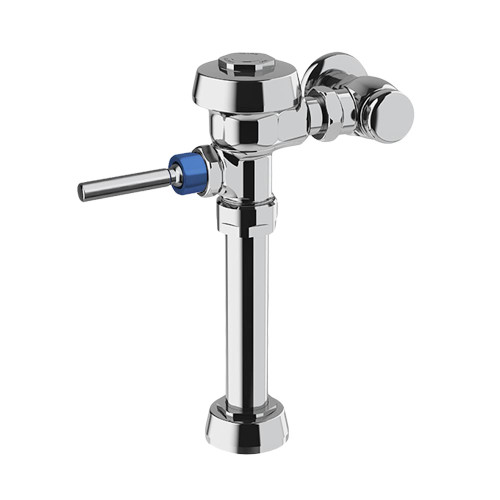

Sloan Royal exposed manual flushometer for water closets (toilets). Single Flush, 3.5 gallons per flush. Polished Chrome finish. ADA compliant, non-hold-open Saniguard® handle with anti-microbial coating.
1-1/2" Spud coupling and flush connection for 1-1/2" top spud toilet fixtures. 1" supply pipe. 1" Angle Control Stop. Adjustable tailpiece.
Valve type: Diaphragm with relief valve.
PERMEX synthetic rubber, dual filtered, fixed bypass diaphragm for improved life and lower maintenance. Choramine resistant. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Vacuum breaker flush connection
- 11-1/2" Rough-in
- 1” I.P.S. Screwdriver Bak-Chek Angle Control Stop with Free Spinning Vandal Resistant Stop Cap
- No external volume adjustment to ensure intended flush volume
Measurement Diagram:
Warnings:
- Specifications for Sloan 3010120 Flushometer
- Installation Guide for Sloan 3010120 Flushometer
- Parts guide for Exposed Royal Flushometers
