NOTE: This item is designated as a special finish by the manufacturer and a 25% restocking fee is charged for cancellations and/or returns (excluding defective products).

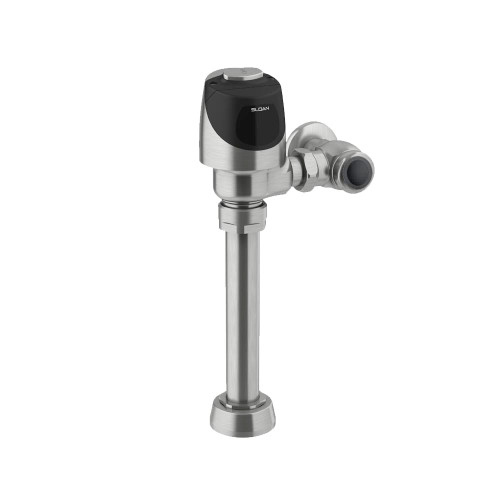

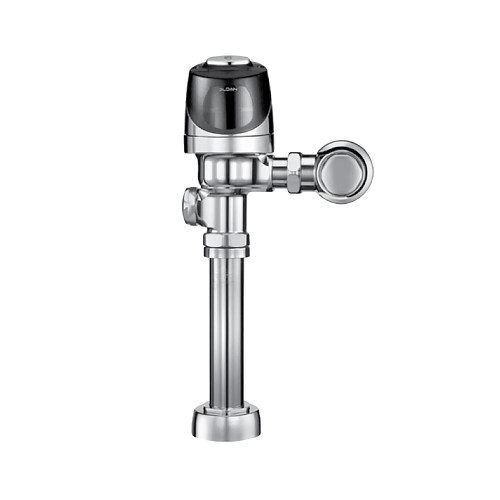

Sloan G2 8110 Optima Plus Series exposed sensor flushometer for toilets. Battery operated with 4 included AA cells. 1.6 gallons per flush. Brushed stainless finish. Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection provides hands-free (no-touch) operation. User friendly 3 second flush delay. Courtesy flush override button.
1-1/2" Spud coupling and flange for 1-1/2" top spud toilet fixtures. 1" supply pipe. Adjustable tailpiece. 1" angle control stop with bumper.
Valve type: flex-tube diaphragm with regulator.
PERMEX synthetic rubber, dual filtered, fixed bypass, flex tube diaphragm for improved life and lower maintenance. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw.
- Engineered metal cover with replaceable lens window.
- "Low Battery" Flashing LED.
- Fixed metering bypass and no external volume adjustment to ensure water conservation.
- 1” I.P.S. Screwdriver Bak-Chek Angle Stop with rubber bumper stop cap.
- PERMEX synthetic rubber main seat, stop seat and vacuum breaker for improved life and lower maintenance.
Measurement Diagram:
Architectural Specification:
- Specifications for 3250349 (G2 Optima Plus 8111 PVDSF YO) Water Closet (Toilet) Flushometer
- Installation Guide for 3250349 (G2 Optima Plus 8111 PVDSF YO) Water Closet (Toilet) Flushometer
