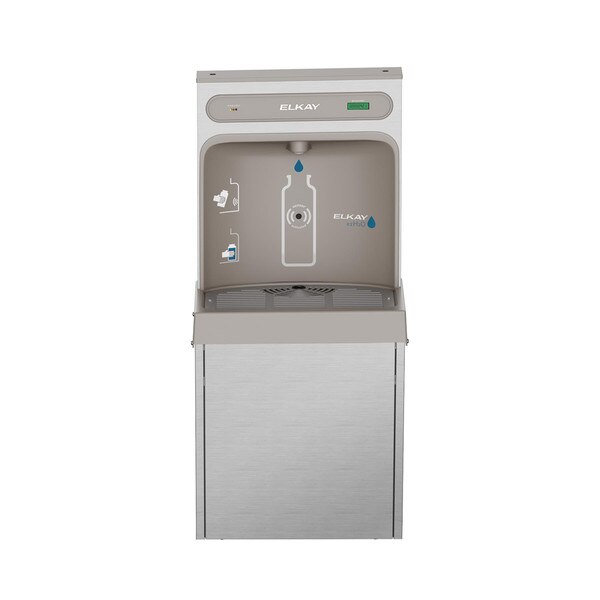

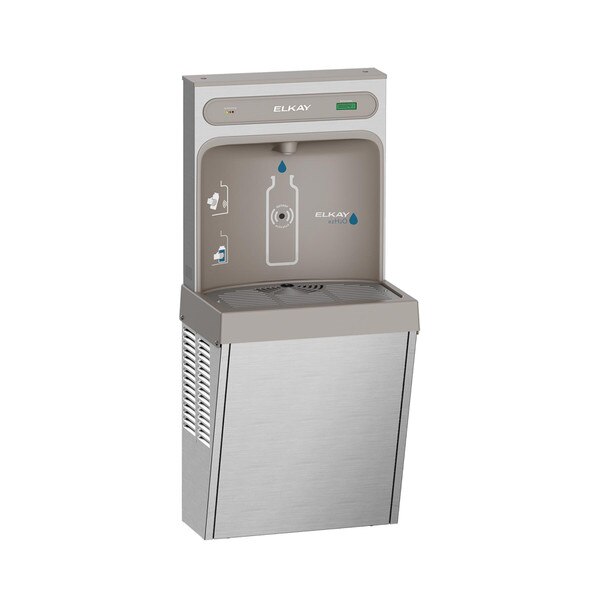

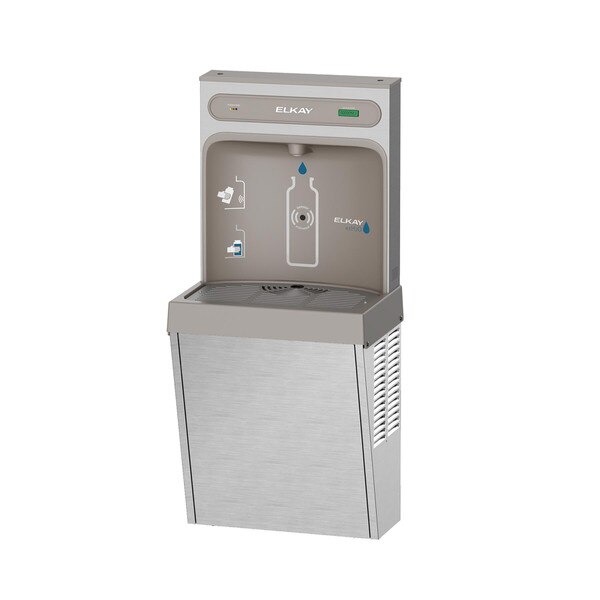

Elkay LZ8WSSSMC Wall Mount, Surface Mount, Refrigerated, Filtered EZH2O Bottle Filler
Elkay presents a refrigerated, touchless, surface mounted, bottle filler with no drinking fountain, and a slimmer profile than the standard Elkay water coolers. This is a bottle filling station only. Since there is no bubbler, the user cannot drink directly from this cooler. If you would like the standard bottle filling station with a bubbler, please see the LZS8WSLK.
The Elkay ezH2O® refrigerated surface mount bottle filling station delivers a convenient, clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. A prominent Green Ticker informs everyone of the number of 20 oz. plastic water bottles saved from waste which also promotes environmental awareness.
A slim one-foot projection creates a slimmer profile for installations with limited space.
Hands-Free operation for maximum hygiene and minimum cross-contamination.
NOTE: The Elkay LZ8WSSSMC bottle filler fits in the same footprint as other Elkay water coolers and is rough-in replacement compatible with EZ, LZ, EMAB and LMAB Elkay models.
- The Elkay ezH2O® refrigerated surface mount bottle filling station delivers a convenient, clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. A prominent Green Ticker informs everyone of the number of 20 oz. plastic water bottles saved.
- No bubbler for minimum cross-contamination
Reduced 12" wall projection - Stainless steel grate removable for easy basin cleaning. Real drain system eliminates standing water.
- Hygienic touchless operation (IR sensor activation)
- 3,000 gallon WaterSentry premium filter
- 1.1 GPM fill rate with laminar flow to fill quickly, but with minimized splashing
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

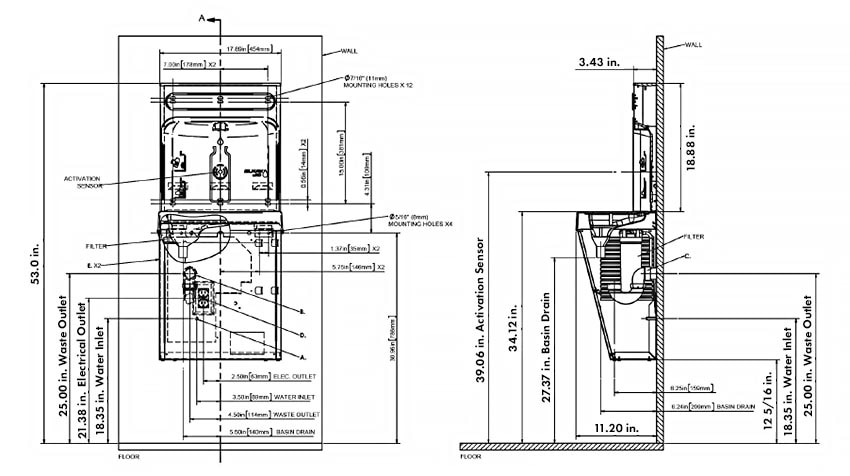

Measurement Diagram:
Alternatives:
Don't need filtered water? Try the EZ8WSSSMC Non-Filtered EZH2O Bottle Filler
| Installation Location: | Indoor |
| Number of Stations: | One (1) |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Antimicrobial ABS alcove with Stainless Steel Grate |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | None |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V, 60Hz 15 Watts Full Load Amps: 5 |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 17-7/8" Wide x 41-1/4" Tall x 11-7/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 27" Length x 20" Width x 20" Height |
| Shipping Weight: | 67.5 lbs. |
| UPC / GTIN: | '094902131894 |
| Manufacturer Model No.: | LZ8WSSSMC |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
| Additional Comments: | Antimicrobial, Hands Free, Laminar Flow, Real Drain |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Refrigerated Surface Mount Bottle Filling Station, Filtered 8GPH Stainless Steel. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
The Benefits of On-Wall ezH2O Bottle Filling Stations
Installation overview for the EZ8WSSSMC and LZ8WSSSMC On-Wall ezH2O Bottle Filling Stations
How to change the filter in original and Enhanced ezH2O Bottle Filling Stations
How to clean and care for your Elkay ezH2O Bottle Filling Station
