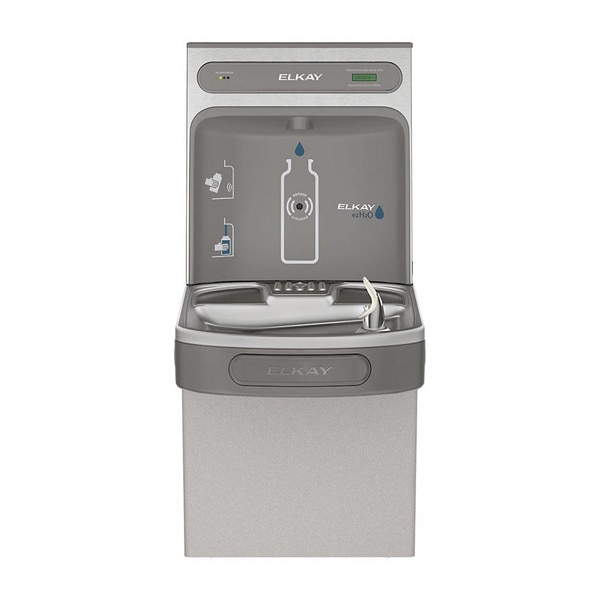

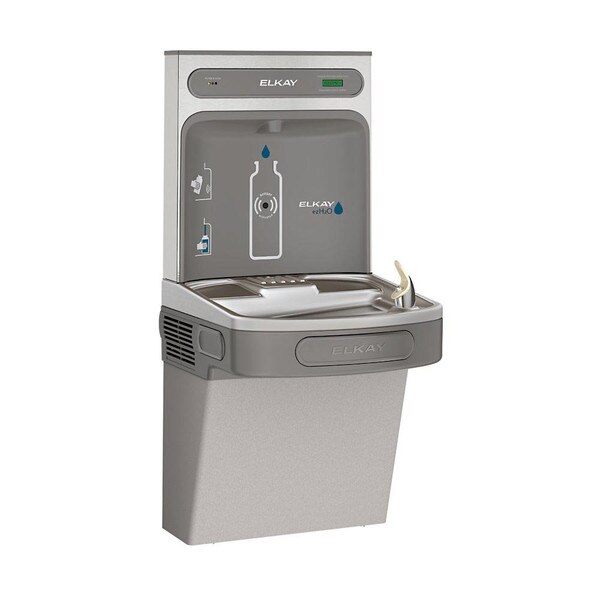

Elkay LZS8WSLK Wall Mount, Filtered, Refrigerated EZH2O Bottle Filler & ADA Fountain, Lt Gray Gr.
Details
The Elkay EZH2O® Bottle Filling Station delivers a quick clean water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Complete cooler and bottle filling station in a consolidated, space-saving, ADA-compliant design. Bottle Filler features sanitary no-touch sensor-activation with automatic 20-second shut-off timer.
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

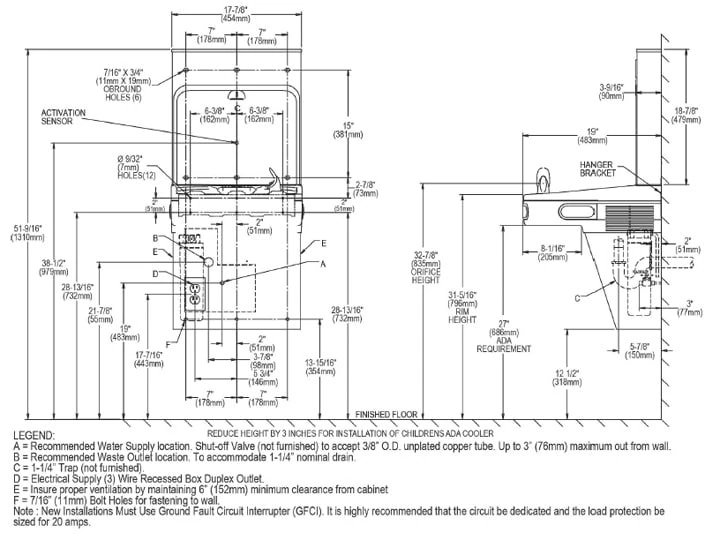

Measurement Diagram:
Specs
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and one (1) push button drinking fountain |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 35-5/8" Tall x 19" Wide x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 20-1/2" Length x 19-11/16" Width x 24-3/8" Height Box 2: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height |
| Shipping Weight: | 70 lbs. |
| UPC / GTIN: | 94902469904 |
| Manufacturer Model No.: | LZS8WSLK |
| Included: | Water Cooler (LZS8WSL) Bottle Filler (LZWSR) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station with Single ADA Cooler, Filtered Refrigerated Light Gray. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
Downloads
Videos
Elkay Filtered ezH2O Bottle Filling Stations Offer Healthier Hydration
Step by step instructions on changing the Sentry water filter on Elkay's EZH2O Bottle Filling Stations. Includes both the original and Enhanced models.
Care and Cleaning for Elkay ezH2O Bottle Filling Stations
Adjusting the stream height and coldness on Elkay water fountains
Replacing the sensor on an Elkay EZH2O Bottle Filling Station
Ratings & Reviews
3 reviews
Bottle Filler for my home
by Myles
This was a wonderful purchase for my home
Very good unit, but one bad thing.
by John
I like the idea of the water bottle filler. And the counter of water bottles saved really hits home the amount of waste saved. The three color filter indicator makes it very easy to know when it is time to change the filter.
Now for the one complaint. This unit is installed in an office setting. It only has 500 bottles saved on the counter, but it doesn't seem like the water is actually filtered. It has only been installed for a month or so. The stainless steel basin for the fountain and bottle dispenser are already completely covered in hard water deposits. Some of those deposits can't even be cleaned off, they are so bad. The filter doesn't seem to get all the minerals and other stuff out of the water. Going through the literature, it also seems like the fountain is not run through the filter. It seems like all the water should run through the filter and the filter should trap more particulate matter from the water.
*Response from Berl's Commercial Supply*
John, the filter services both the bottle filler and the fountain. The starter filter has a lower capacity than the replacement filter. You may have also had residue in the system at the time of installation that needed to be flushed out. I would recommend replacing the current filter with a new one and I think you will see a big difference. You may also want to consider a water softener since it sounds like you have very hard water at your location. New filters can be found at Berls.com - search for 51300C or go to https://www.berls.com/elkay-part-51300C The 51300C comes as a single, 3-pack or 12-pack.
10/10
by Eli Baker
An amazing piece of machinery that allows the user to both drink directly from the fountain and fill their water bottle. Everyone loves these!
