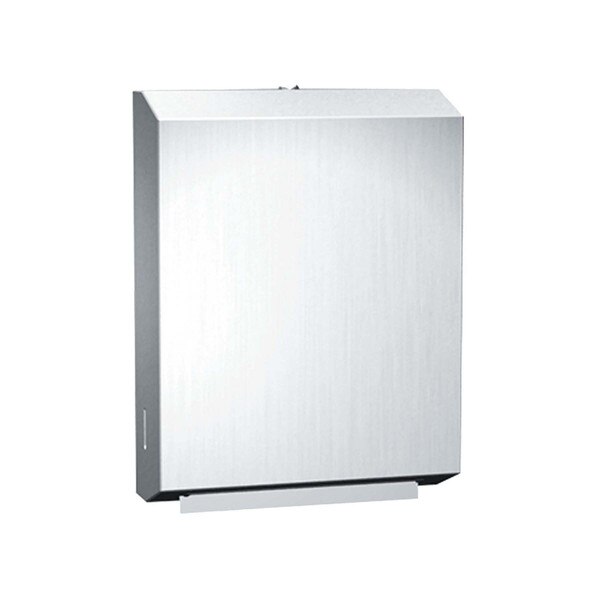

ASI 10-0210 Paper Towel Dispenser, Multi/C-Fold, Stainless Steel, Surface Mount (400C/550M)
Fabricated of 22 gauge stainless steel with satin finish, this unit dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters and is fitted with tumbler lock and heavy-duty stainless steel piano hinge.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Surface |
| Capacity: | 400 C-Fold or 575 Multi-Fold Paper Towels |
| Power: | No power required |
| ADA Compliant: | No (Projects 4-1/16" out from wall) |
| Overall Dimensions: | 9-3/8" Wide x 14-1/2" Tall x 4" Deep |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | 16" Length x 11" Width x 5" Height |
| Shipping Weight: | 5 lbs. |
| Manufacturer Model No.: | 10-0210 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses ASI key: E-114. |
Architectural Specifications:
Surface Mounted Paper Towel Dispenser shall hold and dispense 525 standard multi-fold or 400 standard C-fold paper towels and shall be 22 gage type 304 stainless steel alloy 18-8. All exposed surfaces shall have satin finish and shall be protected during shipment with PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Dispenser door shall be hung on the unit with a concealed full length 3/16" Dia [Ø4,8] heavy duty stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of body and door components shall be of welded construction. Unit shall have refill viewer slots on each side. Unit shall have internal towel stack guides. Wall below unit shall be protected against accidental door drop by selflimiting body and hinge construction.
