Sloan 33351330 EAF-200 Optima Sensor Faucet, 0.5 GPM, Brushed Nickel, AC Adapter, IQ Feature
Details

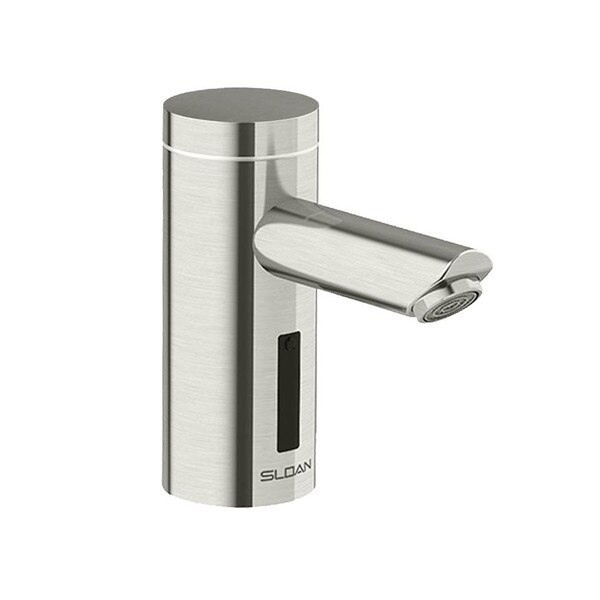

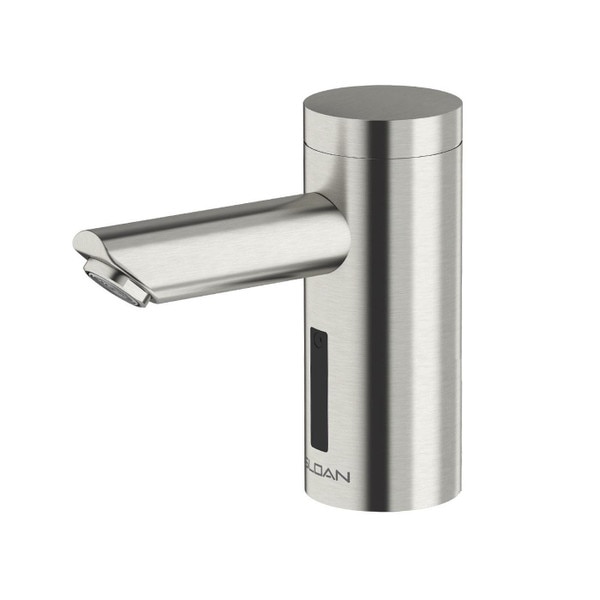

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-PLG-BN-0.5GPM-AER-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.5 GPM with an aerated (AER) output nozzle for less splashing. Default settings use only 0.25 gallons per wash cycle! Brushed nickel finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
Plug-in 6VDC adapter (0335009 EAF-11) is included. To hardwire directly, see 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.25 gallons per cycle.
- Single hole mount type.
- Sensor Range: 4" – 5" (102 – 127mm)
- Temperature Mixer not Included.
- Bluetooth adapter for use with Sloan Connect App®.
Measurement Diagram:
Specs
| Type: | Lavatory Faucet, Deck Mount, Mid Body, Sensor Operated |
| Brand: | Sloan Optima I.Q. |
| Model No.: | 33351330 (EAF-200-PLG-BN-0.5GPM-AER-IQ-FCT) |
| Mount Type: | Single Hole |
| Construction: | Cast Brass |
| Color / Finish: | Brushed Nickel |
| Operation: | Automatic (Touchless) |
| Power: | 110-120V (Standard), 300 Watts or Less |
| Delivery Type (Nozzle): | Aerated (AER) |
| Flow Rate: | 0.5 GPM (Gallons per Minute) 0.25 Gallons per Cycle |
| Cycle: | 30 Seconds |
| Mixer / Valve: | None |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 3 lbs. |
| UPC / GTIN: | 671254595040 |
| Country of Manufacture: | China |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(s) and appropriate mounting hardware. |
Architectural Specifications:
COMPLIANCES & CERTIFICATIONS
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, GPC 0.25 or less, HPD, NSF-61, NYC604.4, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant, WELL Building Standard
