NOTE: This item is designated as a special finish by the manufacturer and a 25% restocking fee is charged for cancellations and/or returns (excluding defective products).

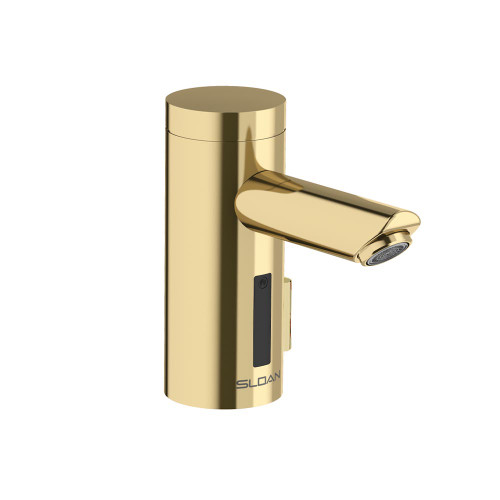

Sloan EAF-250 Optima Sensor Faucet. Model: EAF-250-BAT-ISM-PB-0.35GPM-MLM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.35 GPM with a multi-laminar spray for greater water efficiency while maintaining hand washing effectiveness. Default settings use only 0.175 gallons per wash cycle! Polished brass finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware, flexible high-pressure water supply hose(s) & strainer.
An integrated, color-coded mixing lever, mounted on the side, allows the temperature to be easily controlled. This lever can also be removed once the temperature is set and the remaining socket covered with a finished plug to discourage tampering.
Powered with a 6VDC lithium battery. Expected battery life: 3 years @ 8,000 cycles/month.
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.175 gallons per cycle.
- Sensor Range: 4" – 5" (102 – 127mm)
- Hot and cold temperature mix lever Included on right side of fixture.
Measurement Diagram:
Architectural Specification:
Warnings:
- Specification Sheet for Sloan 33351035 Optima IQ Sensor Faucet
- Installation Guide for Sloan EAF-200/225/250/275 Sensor Faucets
- Sloan 33351035 Repair and Maintenance Guide
