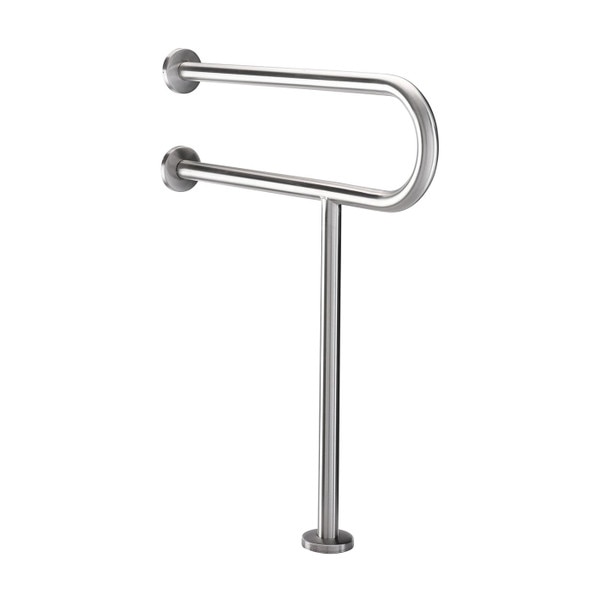

Ponte Giulio G56JCS03N1 24" x 1-1/4" OD Floor Mounted Grab Bar

(0) No Reviews yet
$110.70
SKU: G56JCS03N1

Ships in 2 business days from manufacturer.

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

Ponte Giulio stainless steel grab bar is manufactured from 304 stainless steel and has a 1.2mm wall thickness. This grab bar is 1.25" in diameter and has concealed installation plates. This product has a 265 pound load capacity which exceeds ADA requirements.


  • Mounting hardware included for wood stud installation.

  • 24" Floor mounted grab bar. 1.25” diameter, 1.2mm wall thickness, 304 stainless steel.

  • Durable & Rust Proof

  • Lifetime Warranty

  • Made in Italy

  • Exceeds ADA Load Requirements

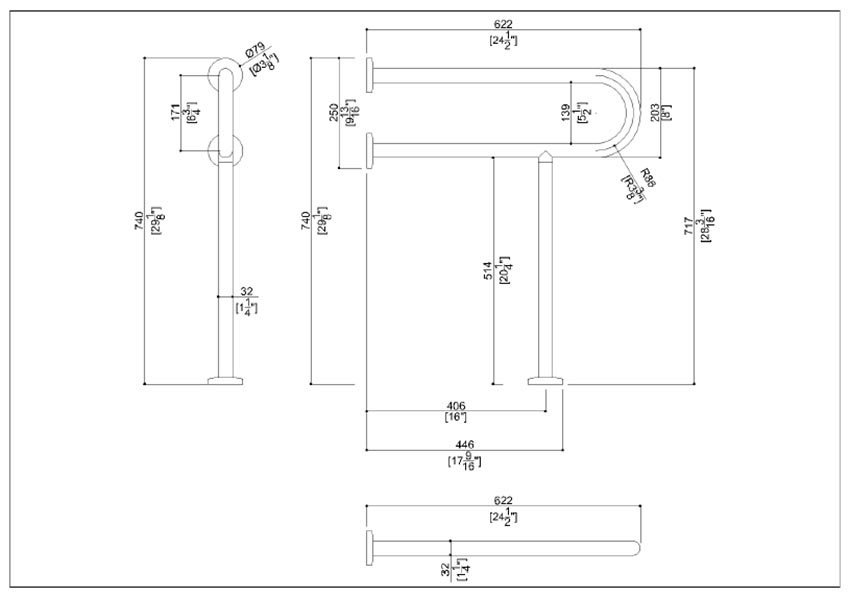

Measurement Diagram:


Type: Wall-to-Floor Grab Bar
Primary Material: Stainless Steel
Mount Type: Concealed (Snap Flange)
Outside Diameter: 1-1/4"
Rated Width: 23-3/4"
Rated Length: 27-7/16"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: Up to 250 lbs.
Bariatric: No
Antimicrobial: No
Overall Dimensions: 24-1/2" Wide x 29-1/8" Tall x 3-1/8" Deep
Shipping Dimensions: 30" Length x 26" Width x 4" Height
Shipping Weight: 5.7 lbs.
UPC / GTIN: 023616322588
Manufacturer Model No.: G56JCS03N1
Country of Manufacture: Italy
Warranty: Lifetime Manufacturer's
