Elkay LZSTLG8WSLK Wall Mount, Refrig., Filtered, Green Spec, EZH2O & Bi-level Fountain, Lt Gray

(0) No Reviews yet
$2,275.80
SKU: LZSTLG8WSLK

IN STOCK

12 available for immediate shipment

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

NOTE: Tthis product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation


  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).

  • Fill rate is 1.1 GPM.

  • High-performance compressor and insulation reduce energy consumption. GreenSpec listed and badged to demonstrate a commitment to sustainability.

  • Visual filter monitor with LED filter status indicator for when filter change is necessary.

  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.

  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.



This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.



Certifications:

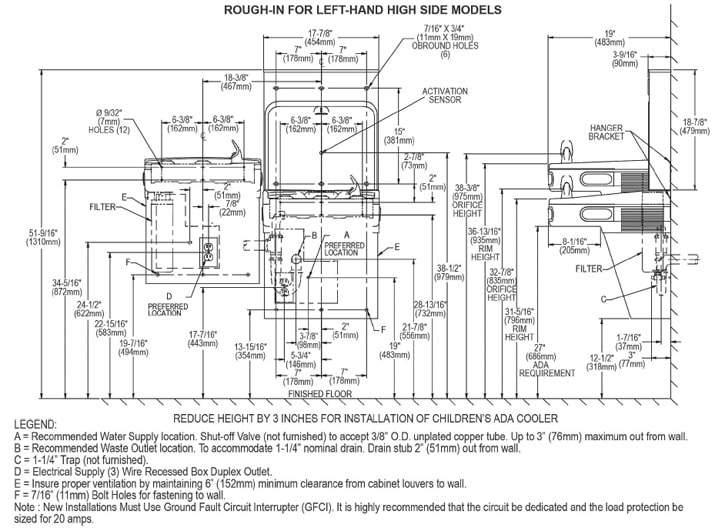

Measurement Diagram:


Installation Location: Indoor
Number of Stations: One (1) EZH2O bottle filling station and two (2) drinking fountains
Mount: Wall / Surface
Operation: One (1) automatic (infra-red sensor) bottle filler, and
two (2) push button drinking fountains
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Vinyl Clad Steel (Light Gray Granite)
Bubbler(s): Flexi-Guard Safety Bubbler
Cooled: Yes
Filtered: Yes | Replacement filter 51300C
Power: 110-120V (Standard)
Status Display: Filter Status Indicator (Green/Yellow/Red)
Green Ticker Display (Counts bottles saved from waste)
Overall Dimensions: 44-9/16" Tall x 36-3/4" Wide x 19" Deep
Rough-in: Not applicable
Shipping Dimensions: Box 1: 20-1/2" Length x 19-11/16" Width x 34-3/16" Height
Box 2: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height
Shipping Weight: 92 lbs.
UPC / GTIN: '094902014685
Manufacturer Model No.: LZSTLG8WSLK
Country of Manufacture: USA
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited

Warnings:

California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler, High Efficiency Filtered Refrigerated Light Gray. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, High Efficiency, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® StreamSaver ™ bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
