  • Elkay LZSTL8WSSK Wall Mount, Filt., Refrig., EZH2O Bottle Filler & Bi-level Water Fountain, SS

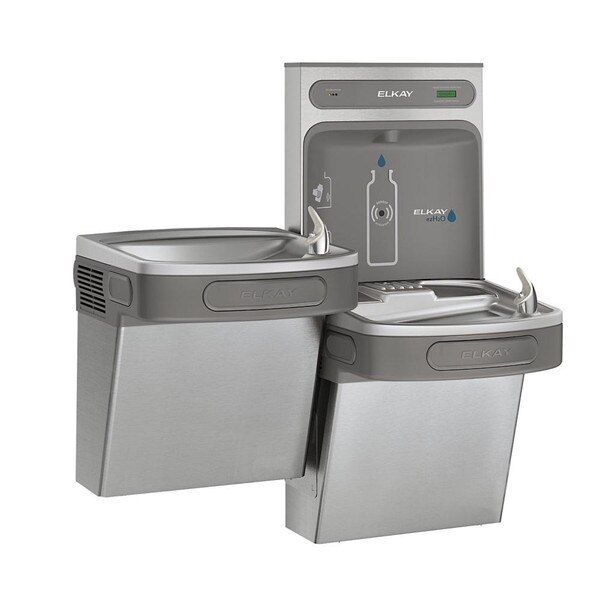

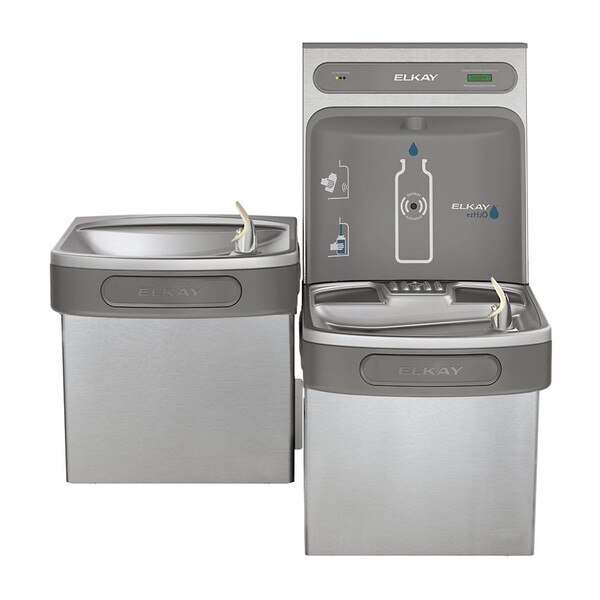

Elkay LZSTL8WSSK Wall Mount, Filt., Refrig., EZH2O Bottle Filler & Bi-level Water Fountain, SS

(0) No Reviews yet
$1,991.74
SKU: LZSTL8WSSK

IN STOCK

3 available for immediate shipment

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.

Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

NOTE: Tthis product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
  • Fill rate is 1.1 GPM.
  • Visual filter monitor with LED filter status indicator for when filter change is necessary.
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.

This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.



Certifications:

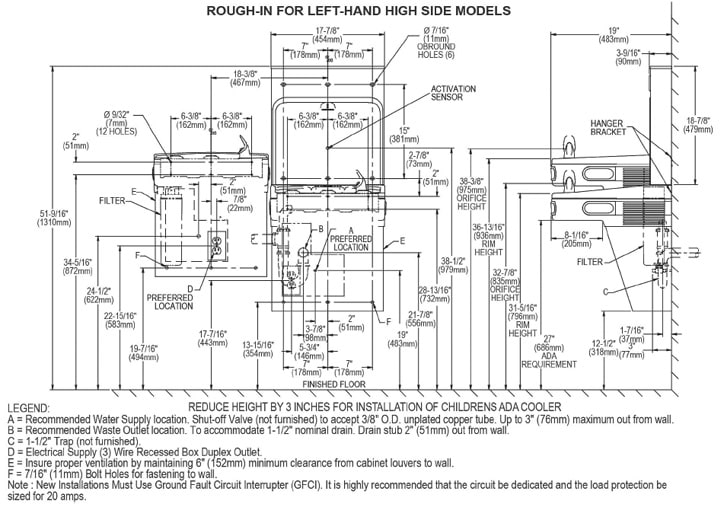

Measurement Diagram:


Installation Location: Indoor
Number of Stations: Two (2) drinking fountains plus one (1) EZH2O bottle filling station
Mount: Wall / Surface
Operation: One (1) automatic (infra-red sensor) bottle filler, and
two (2) push button drinking fountains
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Stainless Steel, Brushed Finish
Bubbler(s): Flexi-Guard Safety Bubbler
Cooled: Yes
Filtered: Yes | Replacement filter 51300C
Power: 110-120V (Standard)
Status Display: Filter Status Indicator (Green/Yellow/Red)
Green Ticker Display (Counts bottles saved from waste)
Overall Dimensions: 44-1/8" Tall x 36-3/4" Wide x 19" Deep
Rough-in: Not applicable
Shipping Dimensions: Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height
Box 2: 20-1/2" Length x 19-11/16" Width x 34-3/16" Height
Shipping Weight: 91 lbs.
UPC / GTIN: '094902470023
Manufacturer Model No.: LZSTL8WSSK
Country of Manufacture: USA
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited

Warnings:

California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler, Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.



Elkay Filtered ezH2O Bottle Filling Stations Offer Healthier Hydration





Step by step instructions on changing the Sentry water filter on Elkay's EZH2O Bottle Filling Stations. Includes both the original and Enhanced models.





Care and Cleaning for Elkay ezH2O Bottle Filling Stations





Adjusting the stream height and coldness on Elkay water fountains





Replacing the sensor on an Elkay EZH2O Bottle Filling Station
