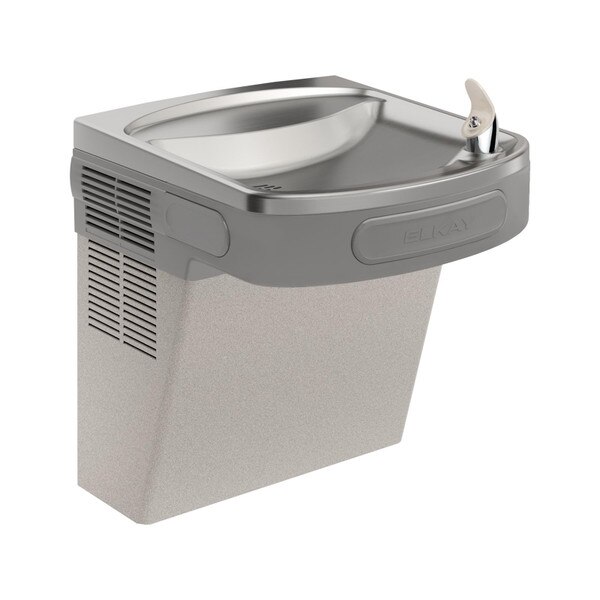

Elkay (LZS8L) Wall Mount, Filtered, Refrigerated, ADA Water Fountain, Lt Gray Granite
The Elkay EZ models are our most popular water cooler series. These models offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.
Attractive, contemporary design matches modern architecture.
Electronic bubbler push bars for easy activation.
Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
Vinyl clad finish is durable and attractive.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:
Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Basin(s): | Brushed Stainless Steel |
| Cabinet(s): | Steel |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled ?: | Yes |
| Cooling Capacity: | 8 GPH |
| Filtered ?: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Product Dimensions: | 19-13/16" Tall x 18-3/8" Wide x 19" Deep |
| Net Weight: | 51 lbs. |
| Shipping Dimensions: | 24" Height x 20" Width x 20" Length |
| Shipping Weight: | 53 lbs. |
| UPC / GTIN: | 094902247007 |
| Manufacturer Model No.: | LZS8L |
| Made In: | USA |
Architectural Specifications:
Elkay Wall Mount ADA Cooler Filtered Refrigerated Light Gray Granite. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Filtered. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
