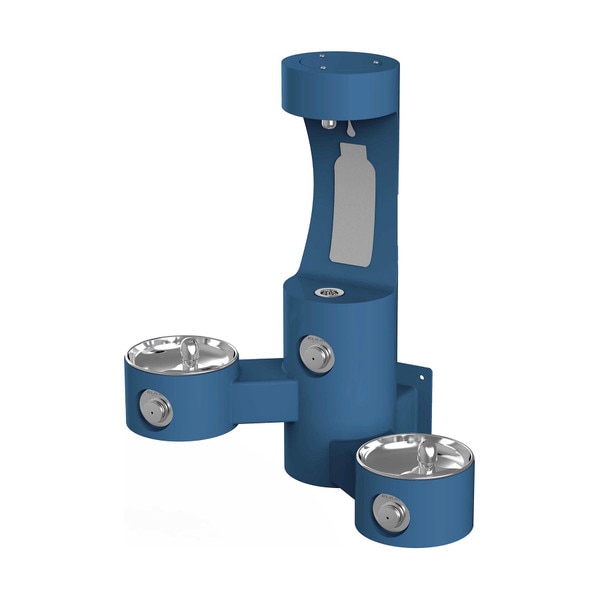

Elkay LK4409BFBLU Outdoor EZH2O Bottle Filling Station w/Bi-Level Fountain, Wall Mount, Blue
Details
Outdoor Bottle Filling Stations are ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.
Beautiful vibrant colors for every environment. Easily identifiable large bottle graphic promotes greater awareness and use.
Bi-level Integrated drinking fountain adds additional water dispensing option for guests and ADA wheel chair accessibility.
- Corrosion-resistant base material provides the ultimate protection from the elements.
- Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Bottle filler meets ADA guidelines for reach range; fountain meets ADA guidelines for wheelchair access.
- Laminar flow provides clean fill with minimal splash.
- Ideal for outdoor use.
Certifications:

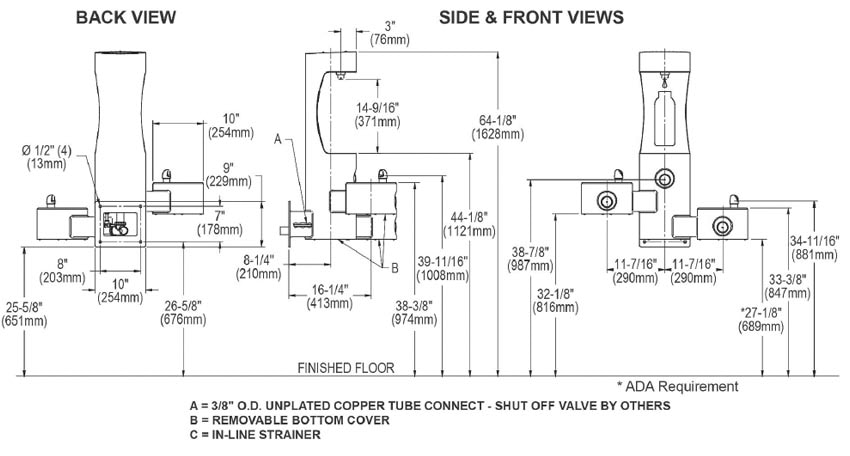

Measurement Diagram:
Specs
| Installation Location: | Outdoor |
| Number of Stations: | (1) EZH2O bottle filling station (2) Drinking Fountains (Bi-level, High/Low) |
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Blue Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 32-7/8" Wide x 38-7/16" Tall x 21-1/4" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 48" Length x 40" Width x 30" Height |
| Shipping Weight: | 203 lbs. |
| UPC / GTIN: | 94902109558 |
| Manufacturer Model No.: | LK4409BFBLU |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Outdoor ezH2O® Bottle Filling Station Wall Mount, with Bi-Level Fountain Non-Filtered Non-Refrigerated. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow. Furnished with Vandal Resistant bubbler. Mechanical Bottle Filler Button with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Outdoor applications, serving 3 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
