Bradley BradEX Diplomat semi-recessed mounted sensored roll towel dispenser/waste receptacle, 22 gauge stainless steel cabinet with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges. 22 Gauge stainless steel flange with exposed surfaces in architectural satin finish. One piece seamless construction, 1-inch wide with 1/4" return. 22 Gauge stainless steel door with full length piano hinge and tumbler lock keyed like other Bradley units. 22 Gauge stainless steel waste container with exposed surfaces in architectural satin finish. All welded construction. Secured to cabinet with tumbler lock keyed like other Bradley units. Front of cabinet has matching curvature to other Bradley Diplomat washroom accessories. Capacity : towel dispenser - one standard core 8" width by 8" roll paper towel. 21 gallon waste container. Towel dispenser delivers preset length of towel (10" per stroke). Receptacle removable for servicing by unlocking waste container. Operates with less than 5 pounds of force. Compliant to ADA standards. 4" semi-recessed mounted and 10-11/16" projects. Sensored roll-towel dispenser, maintain design aesthetic in spite of towel contracts as most popular brands will fit. No more unsightly holes in the walls, less wasted paper and easy maintenance. Measures 17-1/8" width by 56" height by 14-11/16" depth.
> Semi-recessed mounted sensored roll towel dispenser/waste receptacle
> Internal hook system conceals trash bags for clean look, 18 gallon capacity
> Dual-curve geometry, high quality, durable and higher aesthetic
> Compliant to ADA standards
> Measures 17-1/8" width by 56" height by 14-11/16" depth
> Semi-recessed mounted sensored roll towel dispenser/waste receptacle
> Internal hook system conceals trash bags for clean look, 18 gallon capacity
> Dual-curve geometry, high quality, durable and higher aesthetic
> Compliant to ADA standards
> Measures 17-1/8" width by 56" height by 14-11/16" depth

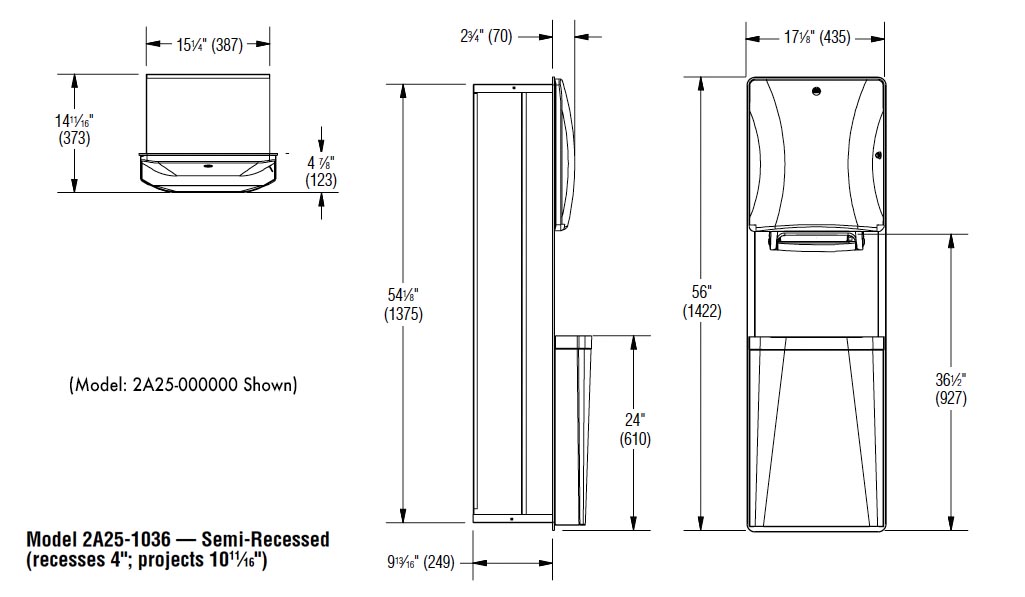

Measurement Diagram:
