Bradley Diplomat Series surface mount folded paper towel dispenser. Towel dispenser door face formed with contemporary contours, radii, and finish matching related accessories in manufacturer's designer series.
Towel dispenser capacity 525 multi-fold or 400 C-fold paper towels, accessed with hinged service door with keyed tumbler lock. Dispenses using less than 5 lbs. of force.
Universal keying.
Formed from stainless steel sheet with satin finish on exposed surfaces, fully welded, with seamless corners and burr-free edges: cabinet and flange 0.030‑inch/22‑ga. thick; door and waste receptacle 0.036‑inch/20‑ga. thick.
Towel dispenser capacity 525 multi-fold or 400 C-fold paper towels, accessed with hinged service door with keyed tumbler lock. Dispenses using less than 5 lbs. of force.
Universal keying.
Formed from stainless steel sheet with satin finish on exposed surfaces, fully welded, with seamless corners and burr-free edges: cabinet and flange 0.030‑inch/22‑ga. thick; door and waste receptacle 0.036‑inch/20‑ga. thick.

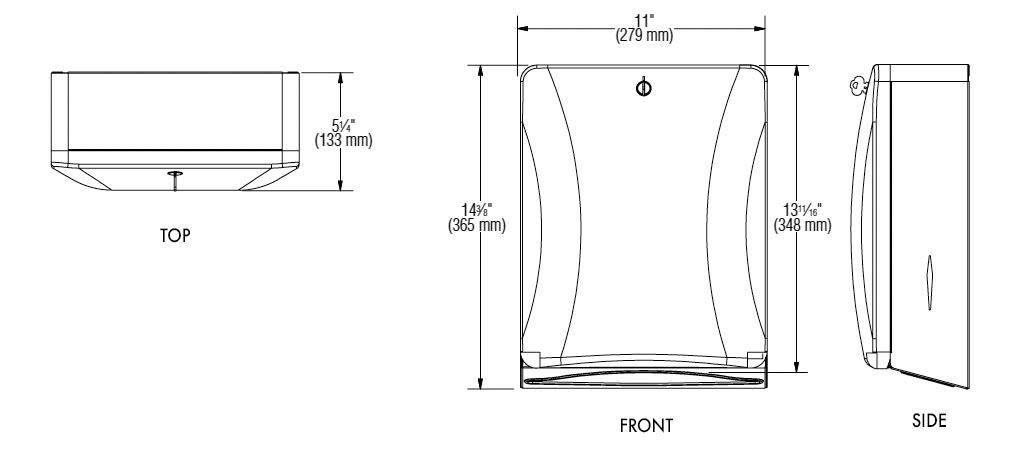

Measurement Diagram:

Warnings:
