72″ (1830mm) length. Type-304 stainless steel, satin finish. 20-gauge (1.0mm), 1″ (25mm) diameter rod. Flanges are 2 - 1/2″ (65mm) square.
- Mounting fasteners included.
- Flanges slide onto rod and are then secured in place to wall.
- Rod tubing may be shortened with appropriate pipe cutting tool.

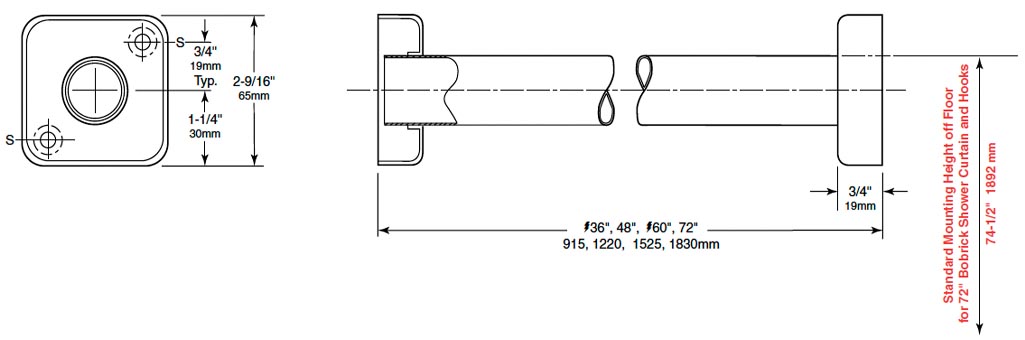

Measurement Diagram:
Architectural Specification:
Shower curtain rod shall be Type-304, 20-gauge (1.0mm) stainless steel tubing with satin finish and 1" (25mm) outside diameter. Flanges shall be Type-304, 20-gauge (1.0mm) stainless steel with satin finish and drawn, one-piece, seamless onstruction.
