60″ (1524mm) length. Type-304 stainless steel, satin finish. 18-gauge (1.2mm), 1 - 1/4″ (32mm) diameter rod. Flanges are 2 - 1/2″ (65mm) square.
- Mounting fasteners included.
- Flanges slide onto rod and are then secured in place to wall.
- Rod tubing may be shortened with appropriate pipe cutting tool.

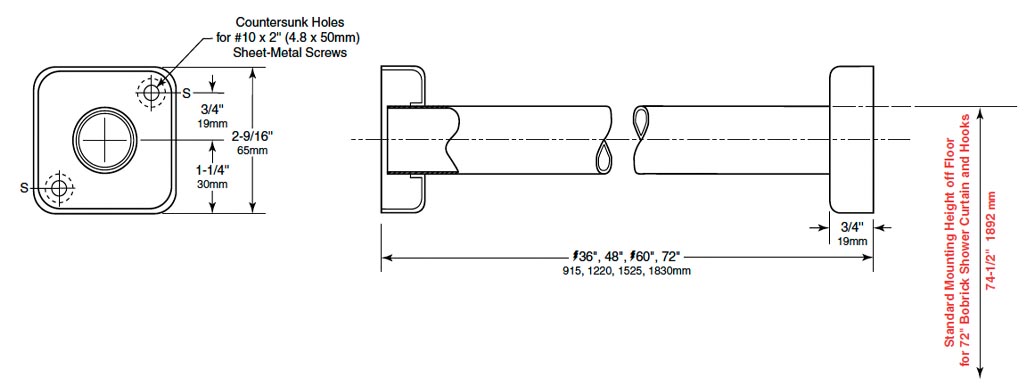

Measurement Diagram:

Architectural Specification:
Shower curtain rod shall be Type-304, 18-gauge (1.2mm) stainless steel with satin finish and have outside diameter of 1‑1/4" (30mm). One-piece, die-formed flanges shall be Type-304, 20-gauge (1.0mm) stainless steel with satin finish.
