Equipped with stainless steel skirt for semi-recessing in 4″ (100mm) deep walls. Push-button operation. Less than 5 lb of force; no grasping, pinching or twisting of the wrist. Easy access product tray. Single-coin slots are key to jam-resistant operation. Accepts one or two quarters (U.S. or Canadian). Push-button coin return cancels product selection. Holds 30 tampons or 20 napkins. Two flush tumbler door locks keyed like other Bobrick accessories. Type-304 satin-finish stainless steel on exposed surfaces. Patented.
- 18-8, Type-304, 18-gauge (1.2mm) stainless steel. All-welded construction.
- Front of door has same degree of arc as other Bobrick Contura Series washroom accessories.
- Impact-Resistant PC-ABS Push Buttons. Coin mechanisms can be converted in the field to any standard coin denomination (Free, 25¢ or 50¢) order Part No. 3706-250 for Free Vend Conversion Kit.
- After coin is inserted in dispensing mechanism of patron's choice, pushing button dispenses boxed sanitary napkin or tampon tube. Mechanical operations; no batteries or electricity required.

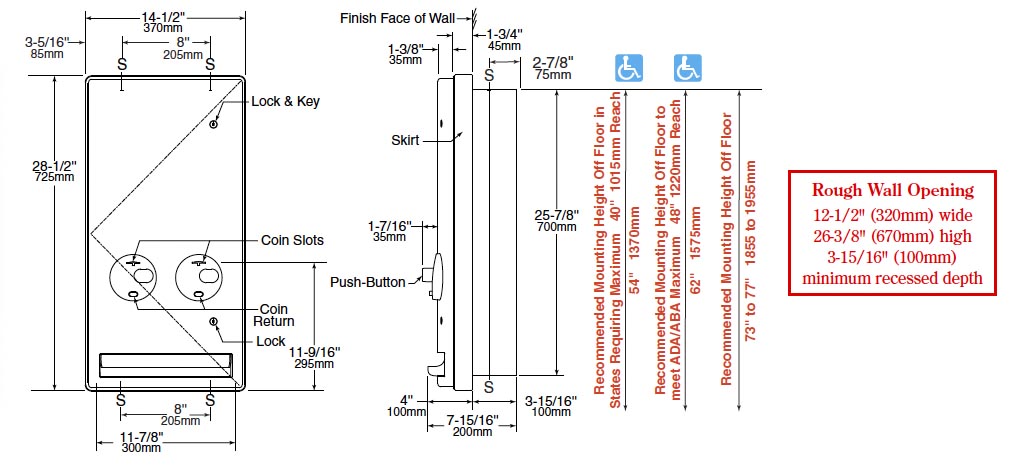

Measurement Diagram:
