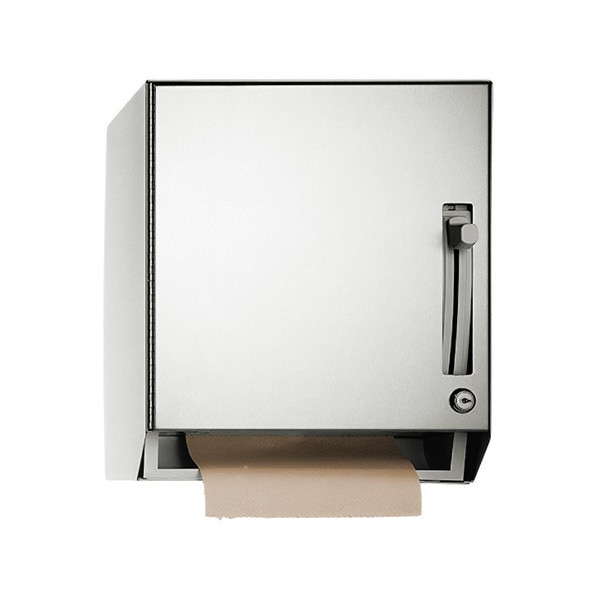

ASI 10-8522 Lever Operated Paper Towel Dispenser, Wall Mount, Surface Mount, Stainless Steel
Mechanical (manually operated) dispenser produces a pre-set length of paper towel. Accepts 8″ or 9″ (205 or 230 mm) wide, 800 ft. (244 m) long rolls.
Towels are fed by lever action until supply is depleted. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length by owner.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll. Locking door prevents unauthorized access or removal.
| Type: | Lever Operated, Roll Type Commercial Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Surface |
| Capacity: | One (1) 8" or 9" wide, 8-5/8" dia. Roll and One (1) Stub roll of same type up to 4" dia. |
| Power: | No power required |
| ADA Compliant: | No (Projects > 4" out from wall) |
| Overall Dimensions: | 14" Wide x 16" Tall x 9-1/2" Height |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | 18" Length x 16" Width x 11" Height |
| Shipping Weight: | 16 lbs. |
| Manufacturer Model No.: | 10-8522 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses Bobrick key: 330-43. |
Architectural Specifications:
Surface Mounted Roll Paper Towel Dispenser shall hold and dispense one 8" or 9" (203 or 229) wide up to 800 ft (244m) long standard towel roll up to 8-5/8" diameter [Ø219] and one stub roll up to 4" diameter (Ø102). Automatic transfer mechanism shall dispense towels from stub roll before starting new roll. Lever shall operate unit and shall adjust to dispense 2-1/2", 4", or 5" (64, 102, and 127) preset length of towel. Unit frame and cabinet shall be 22 gauge stainless steel type 304 alloy 18-8. Door shall be 18 gauge. Towel dispensing slot shall be smooth and burr-free for snag-free dispensing and user safety. Roll paper towel mechanism shall be enamel painted steel. Door shall be attached to cabinet at side with a full length 3/16" diameter (Ø5) multi-staked stainless steel piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of all components shall be of welded construction. All exposed surfaces shall be satin finish and shall be protected during shipment with PVC film easily removable after installation. Towel loading and operation instructions are provided on label inside unit.
