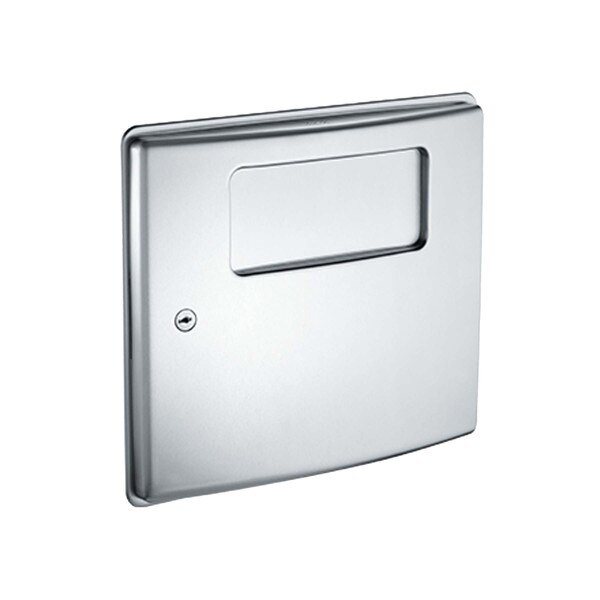

ASI 10-20470 Recessed Sanitary Napkin Disposal w/Swing Door, Stainless Steel, 1 Gallon
Heavy-duty 9⁄64″ staked piano hinge adds to the robust construction. Drawn one-piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1.0 gal. (3.7 L) waste capacity.
Users push door to deposit waste material into receptacle. Push-door is self-closing. Empty refuse manually on a cycle determined by maintenance needs by removing waste container and inverting over collection bag. Hemmed edges on waste container provide safety for service. Locked door prevents unauthorized access or removal.
| Mount: | Wall / Recessed |
| Primary Material: | Stainless Steel |
| Capacity: | 1 Gal. |
| Lid or Cover: | Yes, swing-in door |
| Locks: | Yes |
| Overall Dimensions: | 12-13/16" Wide x 11" Tall x 5-7/16" Deep (Projects 1-1/2" out from wall.) |
| Rough-In: | 11-3/8" Wide x 9-5/8" Tall x 4" Deep |
| Net Weight: | 7.5 lbs. |
| Shipping Dimensions: | 15" Length x 12" Width x 7" Height |
| Shipping Weight: | 8 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published |
| Comments: | Internal (removeable) waste bin Waste bin liners recommended, but not provided. Mounting fasteners not included. |
Architectural Specifications:
Roval™ Collection Recessed Sanitary Napkin Disposal shall have a waste capacity of 1 gal (3.7 liters) of dry/solids waste. Cabinet full door shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Full face door shall be 22 gauge type 304 stainless steel alloy 18-8 and shall be attached to the cabinet at side with a concealed full-length 9/64" diameter (Ø3.5) heavy-duty stainless steel multi-staked piano hinge and shall be held closed with a flush rimless tumbler lock keyed alike to other ASI washroom equipment and shall have the international graphic symbol for waste on face. Cabinet, trim and push-door shall be 22 gauge stainless steel with no exposed fastening devices or spot-welded seams. Push door shall be held closed and shall be hung on a full width concealed 1/8" diameter (Ø3) stainless steel multi-staked spring piano hinge. Waste receptacle shall be stainless steel and shall have fully hemmed edges all around for user and service safety. Face trim shall be 1- 1/16" (27) wide formed from one piece with no miters, welding or open seams and have 1/8" (3) radiused return to wall. All exposed surfaces of unit shall have a satin finish and shall be protected during shipment by PVC film easily removable after installation.
