Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold paper towels and includes a stainless steel waste receptacle with the capacity of 7 gal. (26 L).
Adjustable guide provided to allow dispensing of multi-fold or C-fold paper towels.
Adjustable guide provided to allow dispensing of multi-fold or C-fold paper towels.

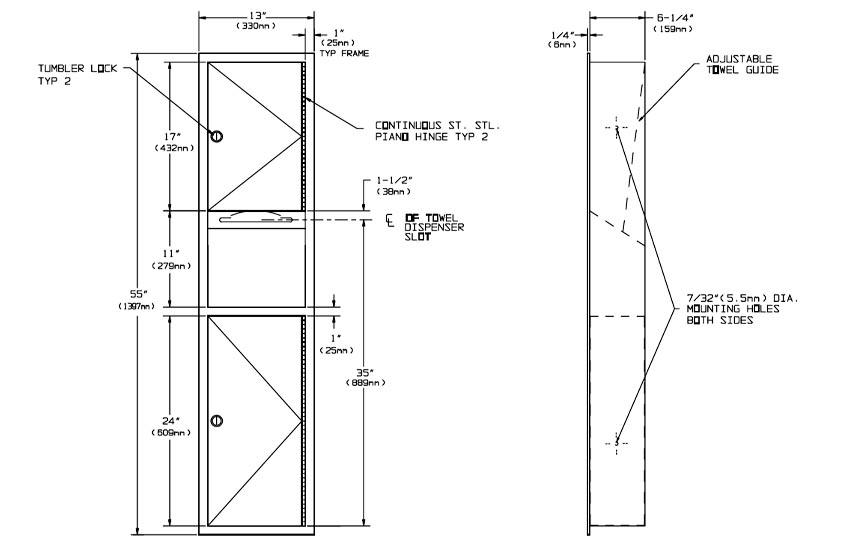

Measurement Diagram:
Architectural Specification:
Recessed Paper Towel Dispenser and Waste Receptacle shall hold and dispense 600 C-fold, 800 multi-fold or 1100 single-fold paper towels and shall have a waste capacity of 7 gal (26 liters). Unit shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge with No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Adjustable guide shall be provided to allow dispensing of multi-fold or C-fold paper towels. Face trim shall be one piece construction with no miters or welding and shall be 1" (25.4mm) wide and have 1/4" (6.35mm) square return to wall. Cabinet shall have no exposed fastening devices or spot welded seams. Doors shall be double pan construction with No-Flex core and shall be mounted to cabinet body on 3/16" (4.8mm) dia. heavy duty stainless steel multi-staked piano hinges. Dispenser and disposal doors unit shall have tumbler locks keyed alike to other ASI washroom equipment.
