  • ASI (10-0464-F) Semi-Recessed Sanitary Napkin & Tampon Dispenser, Free Operation (30N/27T)

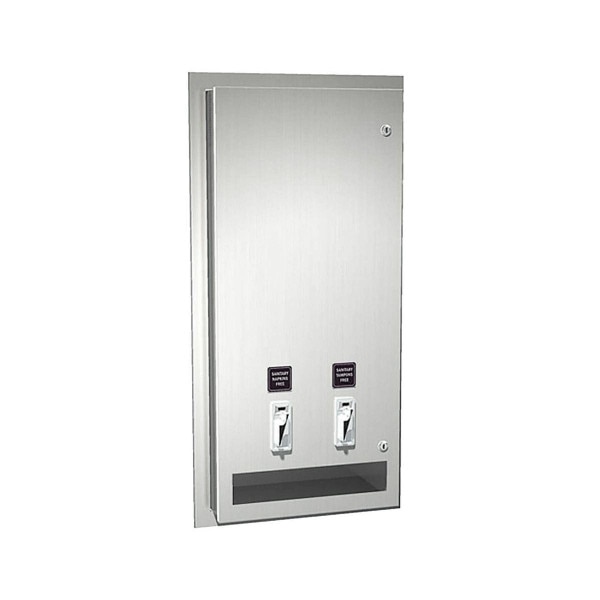

ASI (10-0464-F) Semi-Recessed Sanitary Napkin & Tampon Dispenser, Free Operation (30N/27T)

(0) No Reviews yet
SKU: 10-0464-F

This product will ship from the manufacturer in 2 days.

Dispenser includes two dispensing mechanisms, one for 27 tampons, the other for 30 feminine napkins. Furnished with an adjustable flange for recessing in wall depths from 1″ to 6″ (26 to 152 mm).

Allows for free (no charge) operation

Cover Material: 18 Gauge Type 304 Stainless Steel Alloy 18-8
Mount: Wall / Recessed
Capacity: 30 Sanitary Napkins | 27 Tampons of specified size
Operation: Twist Knob
Denomination: Free operation (no coin needed)
Locks: Yes, three. Two for front cabinet and one (keyed differently) for coinbox.
Overall Dimensions: 13-3/4" Wide x 28-1/8" Tall x 6-1/2" Deep
(Projects 2-1/2" out from wall with standard wall depth of 4")
Rough-In: 12-1/2" Wide x 26-1/2" Tall
Accomodates depth from 1" to 6"
Net Weight: 25.7 lbs.
Shipping DImensions: 30" Length x 16" Width x 8" Height
Shipping Weight: 28.2 lbs.
Comments: Buy American Act Compliant

Architectural Specifications:


Semi-Recessed Mounted Dual Sanitary Napkin & Tampon Dispenser shall hold 30 napkins and 27 tampons of specified sizes. Door shall be 18 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Cabinet and adjustable trim flange shall be 22 gauge same grade stainless steel. Door shall be attached with a full length 3/16" diameter (Ø4.8) stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Internal coin-box shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to provide ability to change mechanisms for coinage denomination. Structural assembly of body and door components shall be of welded construction and have no exposed fasteners or welded seams. Weights for each feed track shall be supplied. Factory installed coin operation denomination shall be ______. (Please fill in 25¢ or 50¢; or FREE and add denomination as suffix to model No (e.g. 0464-25)).
