Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8″ or 9″ wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing.
Surface mounted with stainless steel collar.
Powered by internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 5VDC @ 1A.
Surface mounted with stainless steel collar.
Powered by internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 5VDC @ 1A.

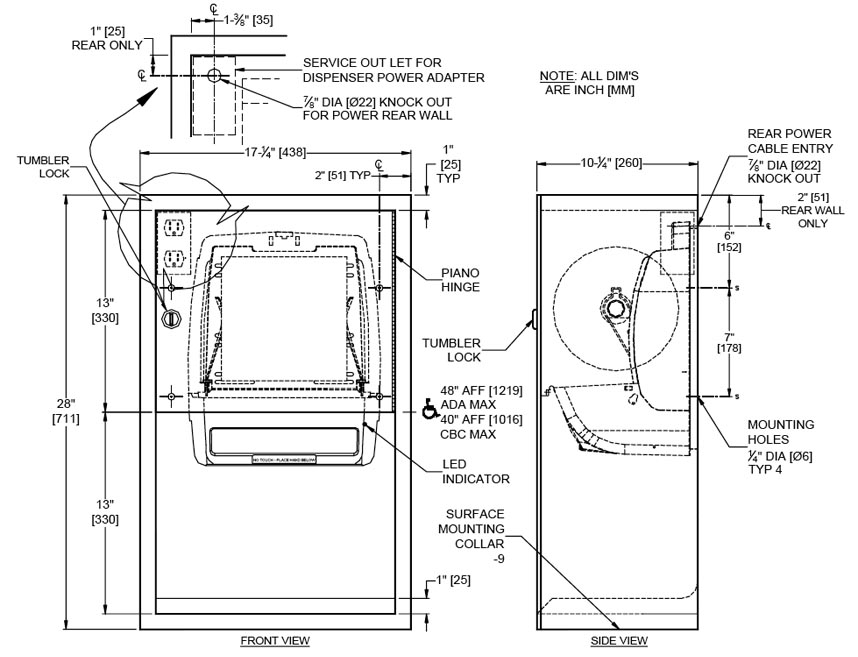

Measurement Diagram:
