ASI 10-0362 Automatic Soap & Sanitizer Dispenser, Stainless Steel, Satin, Surface Mounted

(0) No Reviews yet
$146.24
SKU: 10-0362

IN STOCK

31 available for immediate shipment

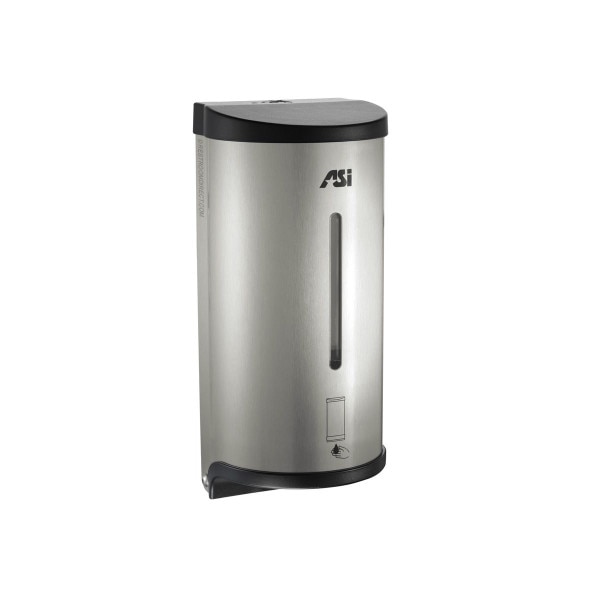

Stainless steel soap and gel sanitizer dispenser in satin finish with proximity sensor. Powered by 6 AA-size batteries (not included) and has tamper-resistant viewing window. Suitable for dispensing higher viscosity/antimicrobial soap and hand sanitizer.

Capacity: 27 oz.(900 ml) using refillable soap tank provided.

  • Liquid Requirements: Proper usage of this dispenser requires, that only soap or sanitizer within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 50 – 3500
  • pH Range: 5.5 ~ 8.5
  • Capacity: 27 oz.(800 ml) using refillable soap or gel hand sanitizer tank
  • Powered by 6 AA-size batteries (not included)
  • Unit can be either wall mounted, or mounted to a mobile stand offered as an additional option by ASI – Part # FS-0300.


Mount: Wall Mount, Surface Mount
Operation: Automatic (IR Sensor)
Soap Type: Liquid or Gel type Soap or hand Sanitizer
(see spec sheet for PH and viscosity requirements)
Capacity: 27 oz.
Cover Material: Brushed stainless steel body with black ABS end caps
Power: 6 AA Batteries (not provided)
Overall Dimensions: 4-3/4" Wide x 10-5/8" Tall x 4-1/8" Deep
Net Weight: 2.2 lbs.
Shipping DImensions: 12" Length x 6" Width x 5.5" Height
Shipping Weight: 2.8 lbs.
UPC / GTIN: Not published
Contry of Manufacture: Taiwan
Warranty: 1 Yr. Manufacturer's Limited
Additional Information: Refill viewer window on front. Locking cabinet.

Architectural Specifications:



Surface Mounted Stainless Steel Automatic Liquid Soap and Gel Hand Sanitizer Dispenser shall hold and dispense liquid soap or gel hand sanitizers having a pH in range 7 ± 1.5 and soaps or lotions only having viscosity in range 100-5k cP (mm²/s [mPa•s]) or gel sanitizers having viscosities in range 3.5k - 5k cP (mm²/s [mPa•s]) and a capacity of 27 oz [.8 L] using the refillable soap tank provided or disposable 27 oz [800 ml] bag-in-a-box format. Dispenser body shall be fabricated of alloy 18-8 stainless steel, type 304 with black high-impact ABS plastic top door, bottom plate and concealed gray high-impact ABS plastic back plate comprising a swing-open body secured with a top mounted lock which is opened with special barrel security key provided. All exposed stainless steel surfaces shall be either satin finish or matte black (add suffix –41). Dispenser shall be powered by four (4) AA-size (1.5 V) batteries (not supplied) and shall operate automatically from IR sensor that shall activate soap dispensing when hands are placed in sensor zone. Adjustable sensor detection range shall be preset at 2-3/8" [60] ± 1-1/2" [38]. An indicator LED shall provide status notification of battery condition and user sensor detection. Unit shall dispense a volume of .03 fl oz to .037 fl oz (1 ml to 1.1 ml) of soap or gel during each activation. A tamper resistant soap level-viewing window shall be provided. An Owner’s Manual and Installation Guide (OM & IG) shall be provided with unit in carton.
