> Capacity: 35 fl. oz. (1 L).
> Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
> Viscosity Range (mPa·s or cP): 50 – 3500
> pH Range: 5.5 ~ 8.5
Architectural Specification:

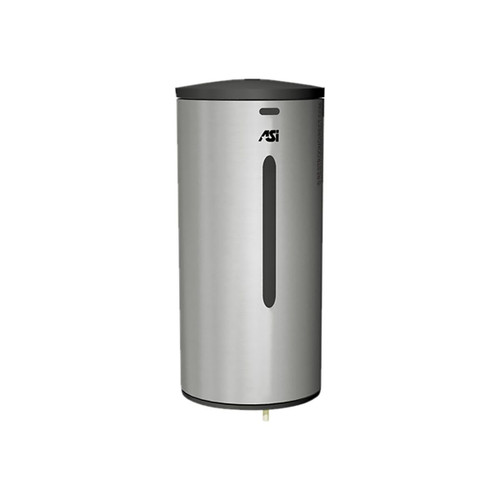

Surface Mounted Stainless Steel Automatic Liquid Soap And Gel Sanitizer Dispenser shall hold and dispense up to 34 oz (1 L) of liquid or lotion soaps or gel sanitizer (containing up to 80% alcohol) and having a pH in range 7 ± 1.5 and viscosity in range 1-3500 cP (mPa•s). Fluids containing reportable salts or chlorides should be avoided. Dispenser body shall be type 304 alloy 18-8 stainless steel with satin finish on all exposed surfaces, and black ABS. Dispenser shall be powered by six (6) AA size 1.5 V cells (by others) and shall operate automatically from IR sensor that shall activate soap dispensing when hands are placed in sensor zone. Sensor detection range shall be self adjusting. Dispenser shall pump for 1 to 5 seconds during each activation as preset by owner. A tamper resistant soap level viewing window shall be provided. Unit shall have a removable access lid on top of unit which is opened with special key provided.
