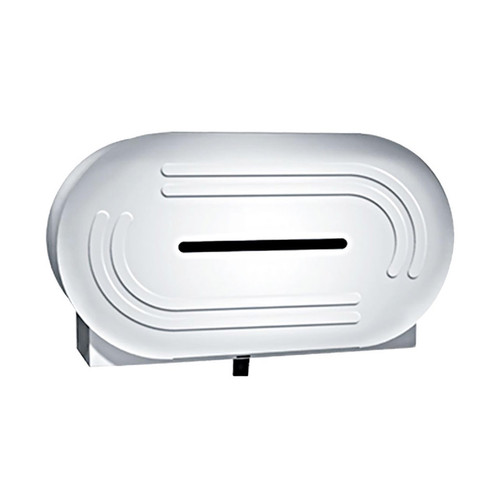

Holds two 9″ (229 mm) diameter rolls of 2-1⁄4″ or 3″ (57 or 76 mm) diameter core. When one roll is depleted, slide panel to expose other roll.
Door cabinet and mounting plate fabricated of 18 gauge type 304 stainless steel with a satin finish.
Two viewing slots reveal toilet tissue rolls inside. Equipped with tumbler lock.
- Heavy duty, durable construction
- Cabinet lock to prevent theft and unauthorized access
- Tumbler lock keyed alike to most other ASI bathroom fixtures.
Architectural Specification:
Surface Mounted Jumbo - Roll Toilet Tissue Dispenser shall hold two (2) 9′′ (229mm) dia. rolls of 3′′ (76mm) dia. or 2-1/4 (57mm) dia. core tissue. Unit cabinet, door and mounting plate shall be fabricated of alloy 18-8 stainless steel, type 304, 18 gauge with a No 4 satin finish and shall be protected during shipment with a PVC film easily removable after installation. Door shall be of drawn one piece seamless construction with integral rigidizing ribs and shall be provided with two (2) tissue level viewing slots. Door shall be hung on heavy duty stainless steel pivot hinges and shall be held closed by a tumbler lock keyed to other ASI washroom equipment. Dispensing mechanism shall be fabricated of high impact chemical and flame retardant ABS. Unit shall accommodate smaller core size rolls by removing the core adapters. When one roll is depleted, other roll shall be selected by shifting over panel lever at bottom of unit. Unit shall automatically reset to first roll during maintenance access.
