Sloan 3335117 Optima EAF-275 Sensor Faucet, 0.5 GPM, Solar Powered, Mixing Lever, Aerated, IQ, Polished Brass
Details

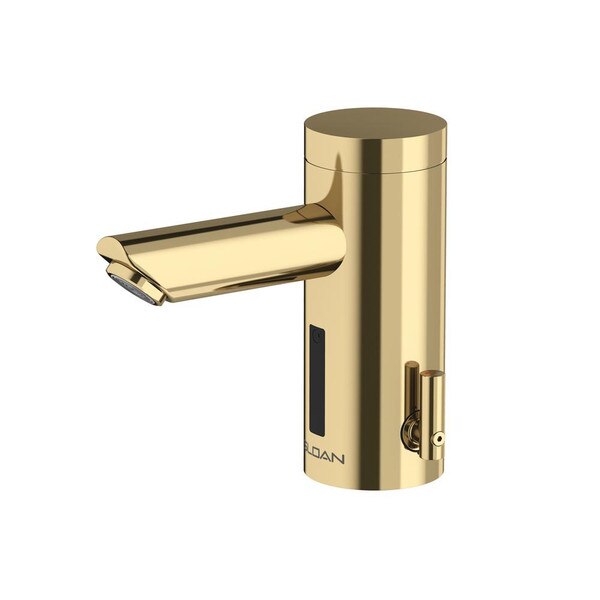

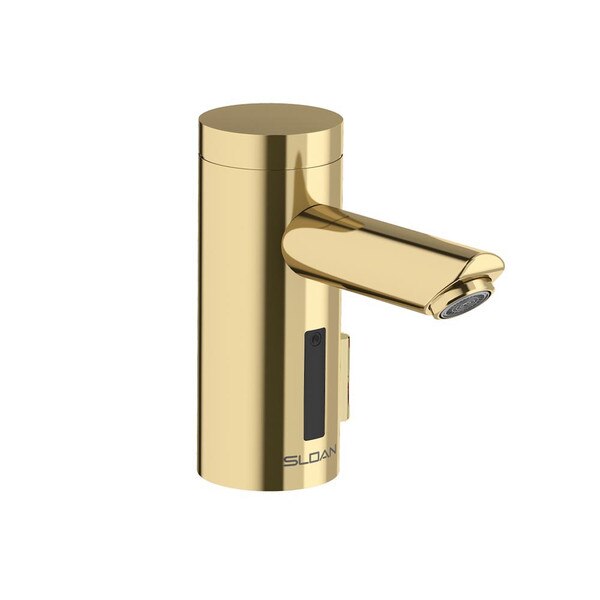

Sloan EAF-275 Optima Sensor Faucet. Model: EAF-275-SOL-ISM-PB-0.5GPM-AER-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.5 GPM with aerated flow. Default settings use only 0.25 gallons per wash cycle! Polished Brass finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware, flexible high-pressure water supply hose(s) & strainer.
An integrated, color-coded mixing lever, mounted on the side, allows the temperature to be easily controlled. This lever can also be removed once the temperature is set and the remaining socket covered with a finished plug to discourage tampering.
Solar Powered with a 6VDC lithium battery back-up.
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.25 gallons per cycle.
- Sensor Range: 4" – 5" (102 – 127mm)
- Hot and cold temperature mix lever Included on right side of fixture.
Measurement Diagram:
Specs
| Type: | Lavatory Faucet, Deck Mount, Mid Body, Sensor Operated |
| Brand: | Sloan Optima IQ, EAF Series |
| Model No.: | EAF-275-SOL-ISM-PB-0.5GPM-AER-IQ-FCT |
| Mount Type: | Single Hole |
| Construction: | Cast Brass |
| Color / Finish: | Polished Brass |
| Operation: | Automatic (Touchless) |
| Power: | Solar (w/Battery BU), 6 Volt Type CR-P2 |
| Delivery Type (Nozzle): | Aerated (AER) |
| Flow Rate: | 0.5 GPM (Gallons per Minute) 0.25 Gallons per Cycle |
| Cycle: | 30 Seconds |
| Mixer / Valve: | Integrated side mount hot/cold lever |
| Overall Dimensions (above counter): | 5-11/32" Tall x 2-9/16" Wide x 5-3/8" Deep |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 3.4 lbs. |
| UPC / GTIN: | 671254425378 |
| Country of Manufacture: | China |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(s) and appropriate mounting hardware. |
Warnings:
 | This product can expose you to chemicals including lead, which is [are] known to the State of California to cause cancer and birth defects. For more information go to www.P65Warnings.ca.gov or download Sloan's Prop 65 FAQ Sheet. |
Architectural Specifications:
Solar Power Supply, Integrated Side Mixer, Polished Brass Finish, 0.5 gpm, Aerated Spray, Infrared Sensor, Optima® Solar-Powered Deck-Mounted Mid Body Faucet.
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, IAPMO, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NSF-61, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard.
