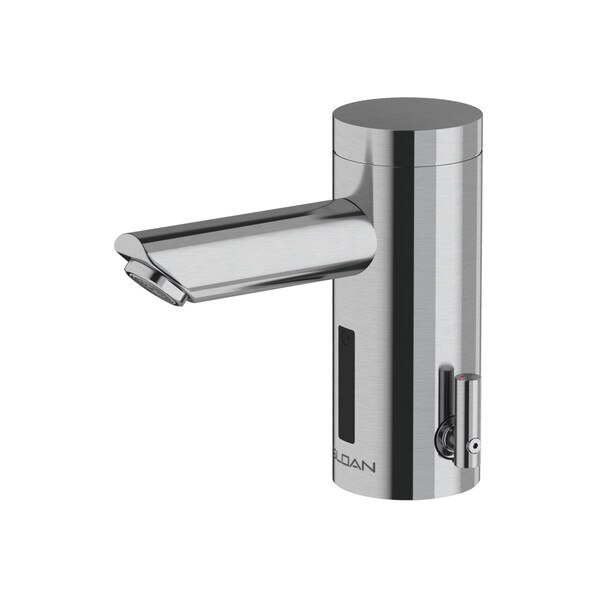

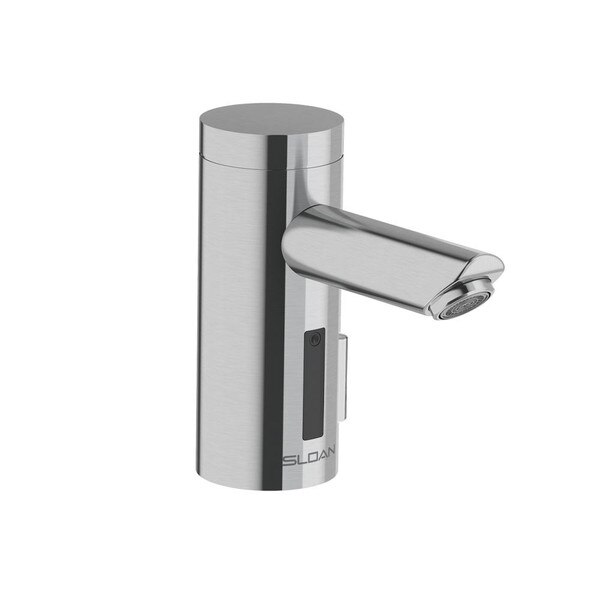

Sloan 33351357 Optima EAF-250 Sensor Faucet, 0.5 GPM, Battery Operated, Mixing Lever, Aerated, IQ, Brushed Stainless
Details
Sloan EAF-250 Optima Sensor Faucet. Model: EAF-250-BAT-ISM-SF-0.5GPM-AER-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.5 GPM with aerated flow. Default settings use only 0.25 gallons per wash cycle! Brushed stainless finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware, flexible high-pressure water supply hose(s) & strainer.
An integrated, color-coded mixing lever, mounted on the side, allows the temperature to be easily controlled. This lever can also be removed once the temperature is set and the remaining socket covered with a finished plug to discourage tampering.
Powered with a 6VDC lithium battery. Expected battery life: 3 years @ 8,000 cycles/month.
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.25 gallons per cycle.
- Sensor Range: 4" – 5" (102 – 127mm)
- Hot and cold temperature mix lever Included on right side of fixture.
Measurement Diagram:
Specs
| Type: | Lavatory Faucet, Deck Mount, Mid Body, Sensor Operated |
| Brand: | Sloan Optima IQ, EAF Series |
| Model No.: | EAF-250-BAT-ISM-SF-0.5GPM-AER-IQ-FCT |
| Mount Type: | Single Hole |
| Construction: | Cast Brass |
| Color / Finish: | Brushed Stainless |
| Operation: | Automatic (Touchless) |
| Power: | Battery Operated: 6 Volt Type CR-P2 |
| Delivery Type (Nozzle): | Aerated (AER) |
| Flow Rate: | 0.5 GPM (Gallons per Minute) 0.25 Gallons per Cycle |
| Cycle: | 30 Seconds |
| Mixer / Valve: | Integrated side mount hot/cold lever |
| Overall Dimensions (above counter): | 5-11/32" Tall x 2-9/16" Wide x 5-3/8" Deep |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 3 lbs. |
| UPC / GTIN: | 671254595316 |
| Country of Manufacture: | China |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(s) and appropriate mounting hardware. |
Warnings:
 | This product can expose you to chemicals including lead, which is [are] known to the State of California to cause cancer and birth defects. For more information go to www.P65Warnings.ca.gov or download Sloan's Prop 65 FAQ Sheet. |
Architectural Specifications:
Battery Power Supply, Integrated Side Mixer, Brushed Stainless Finish, 0.5 gpm, Aerated Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Mid Body Faucet.
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, GPC 0.25 or less, HPD, NSF-61, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant, WELL Building Standard.
