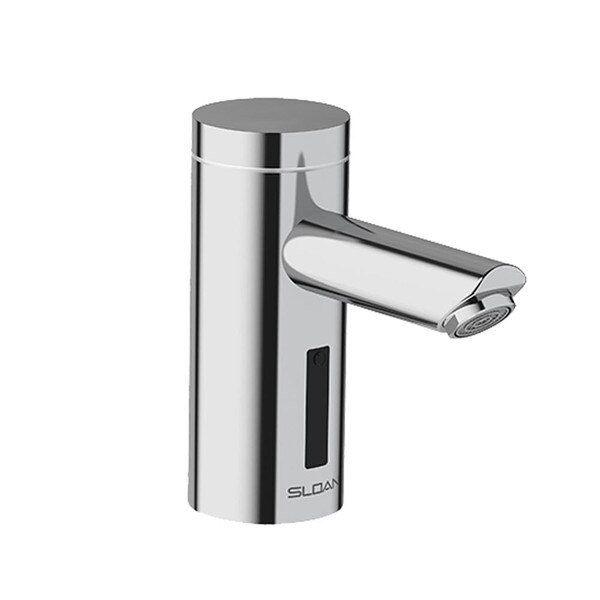

Sloan 3335158T EAF-200 Optima Sensor Faucet, 0.35 GPM, Polished Chrome, AC Adapter, IQ Feature, Carbon Offset

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-PLG-CP-0.35GPM-MLM-IQ-CO-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.35 GPM with a multi-laminar (MLM) nozzle for greater efficiency and less splashing. Default settings use only 0.175 gallons per wash cycle! Polished chrome finish.

This faucet features a carbon offset and provides LEED V4 Water Efficiency Credit as well as LEED Materials & Resources EPD credit.

All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.

In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.

Plug-in 6VDC adapter (0335009 EAF-11) is included. To hardwire directly, see 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).

• Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
• Factory default 30 second timeout and 0.175 gallons per cycle.
• Single hole mount type (4" and 8" Trim plates are available separately. See 3365468 or 3365024.)
• Sensor Range: 4" – 5" (102 – 127mm)
• Temperature Mixer not Included.
• Bluetooth adapter for use with Sloan Connect App^®.

Measurement Diagram:
