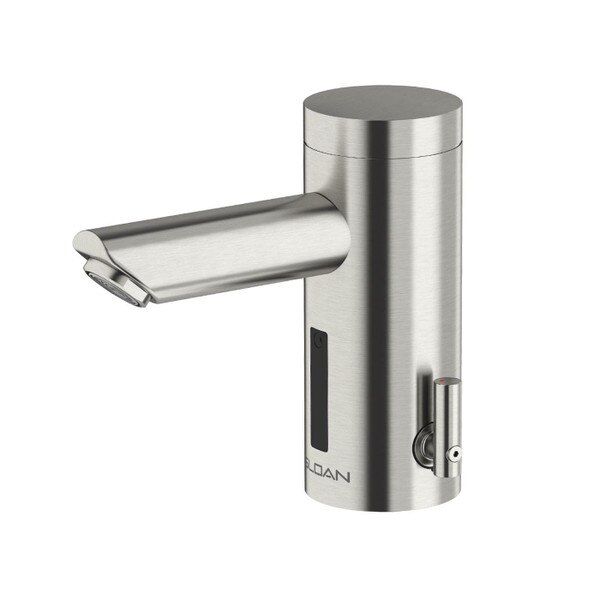

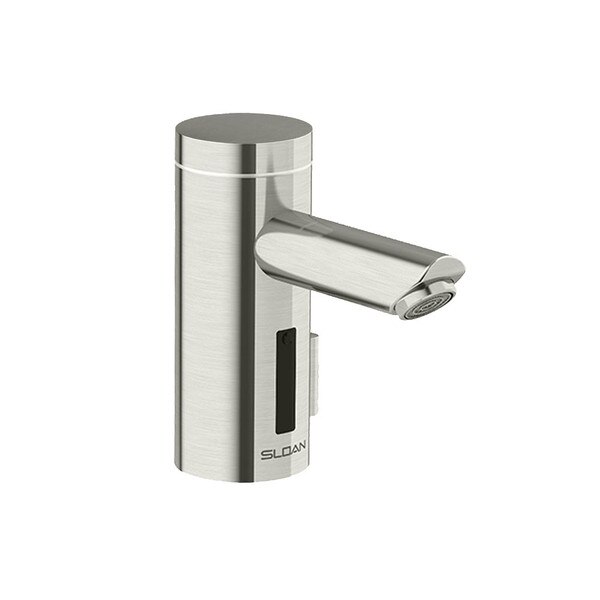

Sloan 33351338 EAF-200 Optima Sensor Faucet, 0.35 GPM, Brushed Nickel, AC Adapter, Integrated Side Mixer, IQ Feature

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-PLG-ISM-BN-0.35GPM-MLM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.35 GPM with a multi-laminar (MLM) nozzle for greater efficiency and less splashing. Default settings use only 0.175 gallons per wash cycle! Brushed nickel finish.

All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.

In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.

This faucet also has an integrated mixing lever that allows the temperature to be adjusted by the user. It can also be removed after temperature is set and replaced with a seamless cap to restrict further adjustment.

Plug-in 6VDC adapter (0335009 EAF-11) is included. To hardwire directly, see 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).

• Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
• Factory default 30 second timeout and 0.175 gallons per cycle.
• Single hole mount type.
• Sensor Range: 4" – 5" (102 – 127mm)
• Hot and cold temperature mix lever Included on right side of fixture.
• Bluetooth adapter for use with Sloan Connect App^®.

Measurement Diagram:
