Sloan 33351317 EAF-200 Optima Sensor Faucet, 0.35 GPM, Brushed Stainless Finish, Hard Wired, IQ Feature
Details
 | IMPORTANT: This product is hardwired. A power supply (AC adapter or transformer) is required to operate and must be purchased separately. |

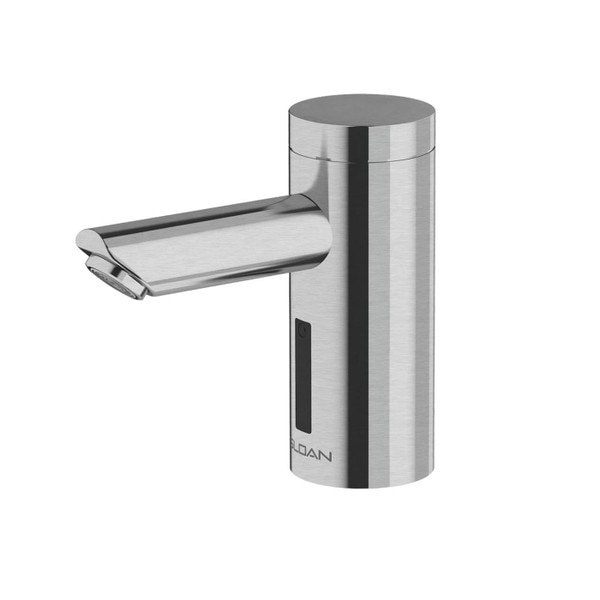

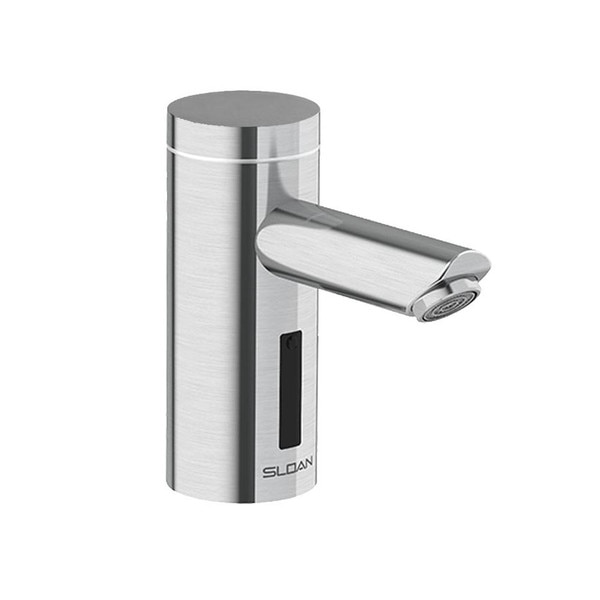

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-HLT-SF-0.35GPM-MLM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.35 GPM with a multi-laminar (MLM) nozzle for greater efficiency and less splashing. Default settings use only 0.175 gallons per wash cycle! Brushed stainless steel finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
NOTE: A daisy chain electrical splitter cable (EAF44) is included (meaning these faucets can be connected in series to a power supply), however, an appropriate power supply must be purchased separately. See 0335009 EAF-11 for an AC adapter or 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.175 gallons per cycle.
- Single hole mount type.
- Sensor Range: 4" – 5" (102 – 127mm)
- Temperature Mixer not Included.
- Bluetooth adapter for use with Sloan Connect App®.
Measurement Diagram:
Specs
| Type: | Lavatory Faucet, Deck Mount, Mid Body, Sensor Operated |
| Brand: | Sloan Optima I.Q. |
| Model No.: | 33351317 (EAF-200-HLT-SF-0.35GPM-MLM-IQ-FCT) |
| Mount Type: | Single Hole |
| Construction: | Cast Brass |
| Color / Finish: | Brushed Stainless |
| Operation: | Automatic (Touchless) |
| Power: | 110-120V (Standard), 300 Watts or Less |
| Delivery Type (Nozzle): | Multi Laminar (MLM) |
| Flow Rate: | 0.35 GPM (Gallons per Minute) 0.175 Gallons per Cycle |
| Cycle: | 30 Seconds |
| Mixer / Valve: | None |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 3 lbs. |
| UPC / GTIN: | 671254594920 |
| Country of Manufacture: | China |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(s) and appropriate mounting hardware. |
Architectural Specifications:
COMPLIANCES & CERTIFICATIONS
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, LEED V4 Water Efficiency Credit, NSF-61, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant, WELL Building Standard
