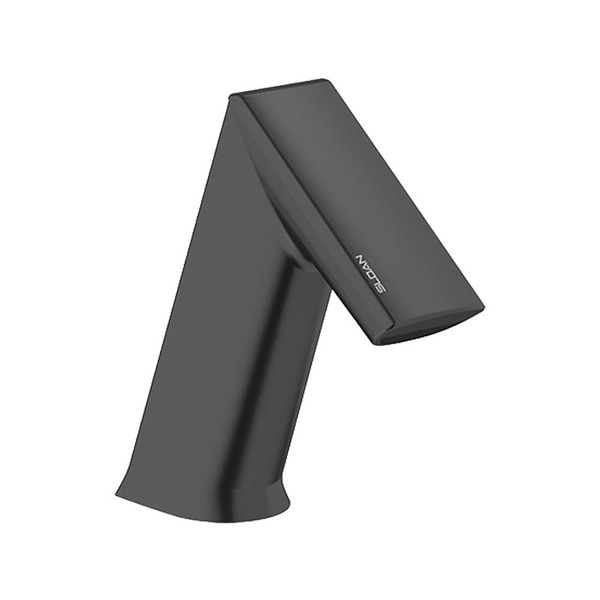

Sloan 3324493 BASYS EFX-250 Sensor Faucet, 0.5 GPM, Battery Operated, No Mixer Included, Multi-Laminar, Graphite
Details
The result of over two years of field research in demanding commercial environments, the BASYS line of faucets is built around shared, robust, components, dramatically improving ease of service.
The EFX-250 faucets are a mid-body format maximizing flexibility for a wide range of use cases. A comprehensive set of features and beautiful designs elevate the user experience. Double infrared sensors (with an automatic setting feature) provide reliable operation. Simple installation (and retrofit) are facilitated by a single hole mounting design with all mounting hardware (and flex hoses) included. In addition, these faucets are battery operated, eliminating the need for an electrical connection.
These faucets are also extremely water efficient while maintaining hand-washing effectiveness. This model features a 0.5 GPM flow rate with multi-laminar output and a 10 second timeout (adjustable).
No temperature mixer is included.
All external surfaces (except for the sensor area) have a graphite finish.
- ONE TOOL SERVICE A single Allen wrench provides access to all key components. No additional tools are required.
- AUTOMATIC SHUT-OFF One twist of the solenoid caddy shuts off the water supply to facilitate replacing or cleaning the particulate filter.
- VISIBLE DIAGNOSTICS Individual external diagnostic LEDs indicate the health and status of key components.
- SHARED PARTS Interchangeability of components simplifies orders, upgrades, repairs and maintenance.
- LINE PURGE All models include a line purge function to eliminate the stagnant water that can lead to bacterial growth.
- SLEEP MODE With a touch, staff can temporarily turn off the water supply in order to clean the sing area without activating water flow.
Measurement Diagram:
Specs
| Type: | Sensor (Touchless) Faucet |
| Brand: | Sloan BASYS (EFX) |
| Model No.: | 3324493 (EFX-250-BAT-GR-0.5GPM-MLM-FCT) |
| Mount Type: | Single Hole |
| Construction: | All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy |
| Color / Finish: | Graphite |
| Operation: | Automatic (touchless) |
| Power: | 4 AA Size Alkaline Batteries |
| Delivery Type (Nozzle): | Multi-Laminar |
| Flow Rate: | 0.5 GPM (Gallons Per Minute) |
| Cycle: | 10 Seconds (Default), Adjustable |
| Mixer / Valve: | None Included |
| Shipping Dimensions: | 11" Length x 8-1/2" Width x 5-1/2" Height |
| Shipping Weight: | 3.6 lbs. |
| UPC / GTIN: | 671254495524 |
| Country of Manufacture: | Switzerland |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(es) and appropriate mounting hardware. |
Warnings:
 | This product and/or packaging can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Architectural Specifications:
Sloan BASYS Model No. EFX-250-BAT-ISM-MB-0.5GPM-MLM-IR-FCT Infrared Sensor Activated Electronic Handwashing Faucet for pretempered or hot/cold water supplies. Product to have double infrared sensors with automatic setting feature. PVD Graphite Finish. Solenoid valve housed in removable carrier that closes water supply upon removal eliminating need to access control stops. Solenoid carrier includes strainer for easy above deck service. Thermostatic mixer ordered separately to comply with ASSE 1070 requirements. The product shall be tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875.
Compliances & Certifications:
ADA Compliant, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, GPC 0.25 or less, HPD, IAPMO, NYC604.4, Proposition 65, WaterSense Listed, WELL Building Standard.
