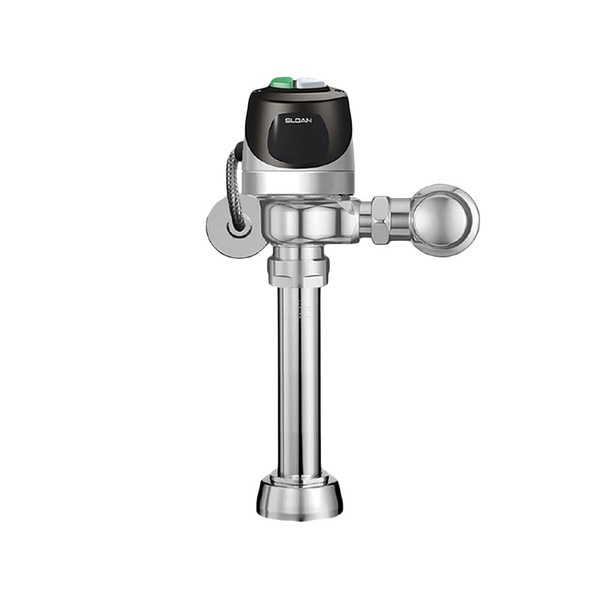

Sloan 33704046 ECOS 111-1.28/1.1 HW Automatic Water Closet (Toilet) Flushometer, Dual Flush, Top Spud, Hard Wired
Details
 | This item requires a transformer (purchased separately). See Sloan Part: EL-386 or EL-451 |
Sloan ECOS exposed sensor flushometer for water closets (toilets). Line Powered with 6 VAC Step Down Transformer (purchased separately). Dual Flush (1.28 or 1.1 gallons per flush). Polished chrome finish. Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection provides hands-free (no-touch) operation. User friendly 3 second flush delay. Courtesy flush override button. ADA compliant.
1-1/2" Spud coupling and flange for 1-1/2" top spud toilet fixtures. 1" supply pipe. 1" Angle Control Stop. Adjustable tailpiece.
Valve type: flex-tube diaphragm with regulator.
PERMEX synthetic rubber, dual filtered, fixed bypass, flex tube diaphragm for improved life and lower maintenance. Choramine resistant. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw.
- Engineered metal cover with replaceable lens window.
- Fixed metering bypass and no external volume adjustment to ensure water conservation.
- 1” I.P.S. Screwdriver Bak-Chek Angle Stop with Free Spinning Vandal Resistant Stop Cap.
- If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water.
- Includes standard 18” electrical cable
Measurement Diagram:
Specs
| Type: | Water Closet (Toilet) Flushometer, Sensor |
| Brand: | Sloan |
| Model No.: | 33704046 (ECOS 111-1.28/1.1 HW) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Flush Volume: | Dual Flush: 1.28 gpf or 1.1 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Dual Filtered Fixed Bypass Diaphragm |
| Power Type: | 110-120V using transformer EL-386 or EL-451 (purchased separately) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | Yes |
| Shipping Dimensions: | 12" Length x 10" Width x 5" Height |
| Shipping Weight: | 8.0 lbs. |
| UPC / GTIN: | 671254591707 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
Architectural Specifications:
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
COMPLIANCES & CERTIFICATIONS
ADA Compliant, BAA Compliant, BABAA Compliant, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, Green Globes Water Credit, UL Certified, UPC Certified, WaterSense Listed.
