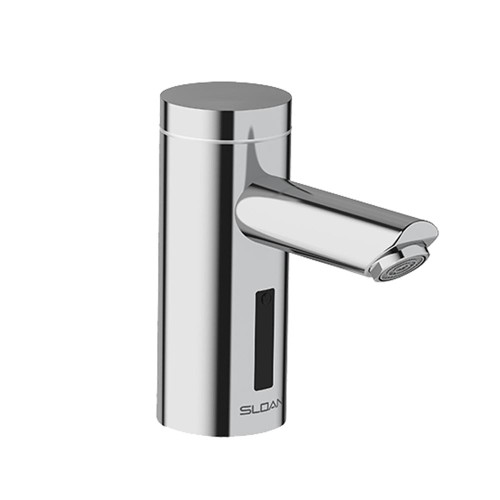

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-PLG-ITM-CP-1.0GPM-LAM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 1.0 GPM with a laminar nozzle for less splashing. Default settings use 0.5 gallons per wash cycle. Polished chrome finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
This faucet has an integrated thermostatic mixing valve which prevents scalding and a mixing lever that allows the warmth to be adjusted by the user as well.
Plug-in 6VDC adapter (0335009 EAF-11) is included. To hardwire directly, see 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.5 gallons per cycle.
- Single hole mount type (4" and 8" Trim plates are available separately. See 3365468 or 3365024.)
- Sensor Range: 4" – 5" (102 – 127mm)
- Integrated thermostatic mixing valve provides ASSE-1070 rating for anti-scald performance.
- Bluetooth adapter for use with Sloan Connect App®.
Measurement Diagram:
Architectural Specification:
COMPLIANCES & CERTIFICATIONS
ADA Compliant, ASME A112.18.1 Compliant, ASSE 1070, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, GPC 0.25 or less, HPD, IAPMO, NSF-61, NYC604.4, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard
