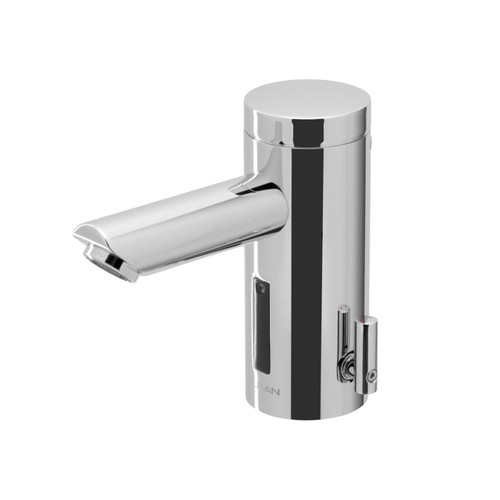

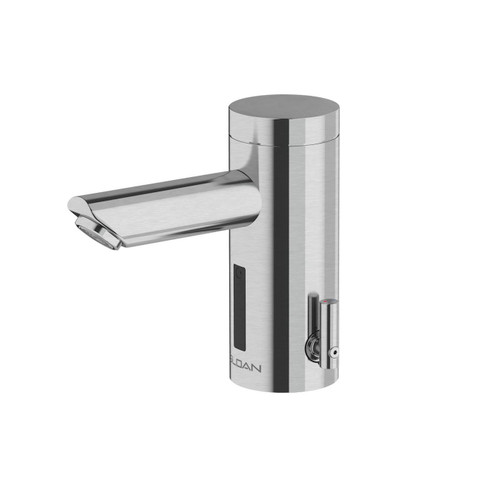

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-HLT-ISM-BN-0.5GPM-MLM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.5 GPM with a multi-laminar (MLM) nozzle for greater efficiency and less splashing. Default settings use only 0.25 gallons per wash cycle! Brushed nickel finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
This faucet also has an integrated mixing lever that allows the temperature to be adjusted by the user. It can also be removed after temperature is set and replaced with a seamless cap to restrict further adjustment.
NOTE: A daisy chain electrical splitter cable (EAF44) is included (meaning these faucets can be connected in series to a power supply), however, an appropriate power supply must be purchased separately. See 0335009 EAF-11 for an AC adapter or 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Hot and cold temperature mix lever Included on right side of fixture.
- Factory default 30 second timeout and 0.25 gallons per cycle.
- Single hole mount type.
- Sensor Range: 4" – 5" (102 – 127mm)
- Bluetooth adapter for use with Sloan Connect App®.
Measurement Diagram:

Architectural Specification:
COMPLIANCES & CERTIFICATIONS
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, GPC 0.25 or less, HPD, NSF-61, NYC604.4, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant, WELL Building Standard
