NOTE: This item is designated as a special finish by the manufacturer and a 25% restocking fee is charged for cancellations and/or returns (excluding defective products).

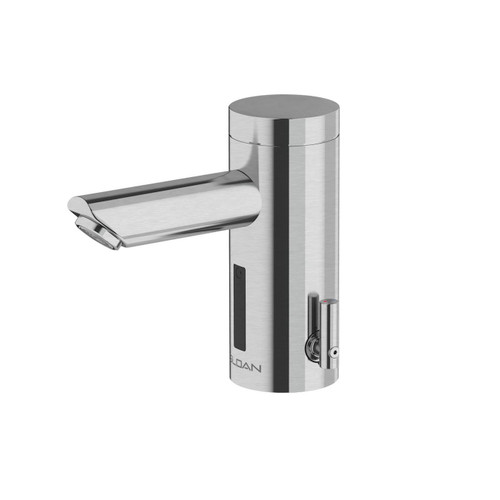

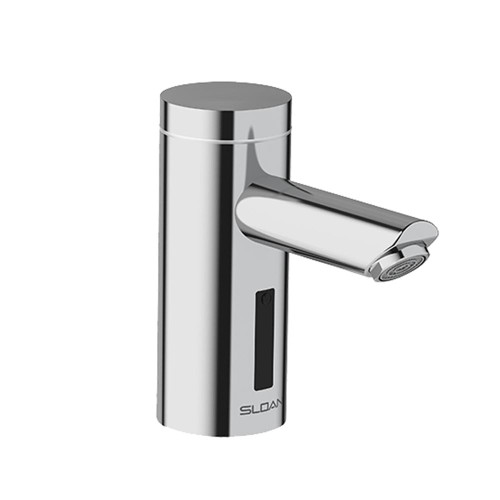

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-PLG-SF-0.35GPM-MLM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.35 GPM with a multi-laminar (MLM) nozzle for greater efficiency and less splashing. Default settings use only 0.175 gallons per wash cycle! Brushed stainless steel finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
Plug-in 6VDC adapter (0335009 EAF-11) is included. To hardwire directly, see 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.175 gallons per cycle.
- Single hole mount type.
- Sensor Range: 4" – 5" (102 – 127mm)
- Temperature Mixer not Included.
- Bluetooth adapter for use with Sloan Connect App®.
Measurement Diagram:
Architectural Specification:
- Specifications Sheet for Sloan 33351017 Optima I.Q. Sensor Faucet
- Installation Guide for Sloan 33351017 Optima I.Q. Sensor Faucet
- Sloan 33351017 Repair & Maintenance Guide
