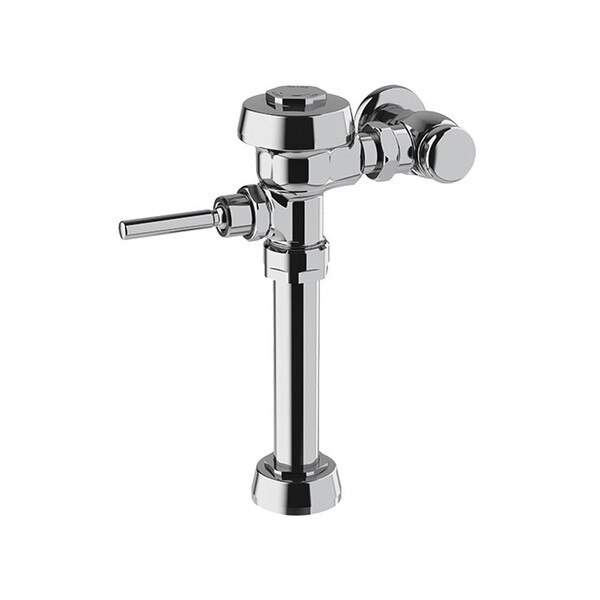

Sloan 3010100 Royal 110-3.5 Exposed Manual Water Closet (Toilet) Flushometer, 3.5 gpf
Details
Sloan ROYAL 110-3.5 Series exposed manual flushometer for toilets. 3.5 gallons per flush. Semi-red brass with polished chrome finish. ADA compliant, non-hold-open handle and no external volume adjustment to ensure water conservation. PERMEX synthetic rubber dual filtered fixed bypass diaphragm for improved life and lower maintenance. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance. Durability is facilitated with high copper, low zinc brass castings for dezincification resistance.
- Flush volumes start as low as 3.5 gpf/13.2 Lpf
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- 1" I.P.S. screwdriver Bak-Chek® angle stop with free-spinning vandal-resistant stop cap
Measurement Diagram:
Specs
| Type: | Water Closet (Toilet) Flushometer, Manual |
| Brand: | Sloan |
| Model No.: | 3010100 (ROYAL 110-3.5) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Manual (Handle) |
| Flush Volume: | 3.5 gpf (13.2 Lpf) |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Diaphragm |
| Power Type: | None (Manual) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | N/A |
| Shipping Dimensions: | 17" Length x 9" Width x 3" Height |
| Shipping Weight: | 6.5 lbs |
| UPC / GTIN: | 671254018167 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
