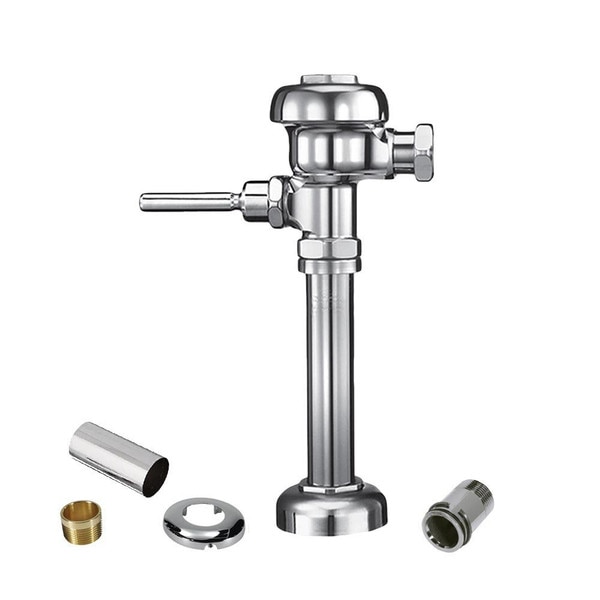

Sloan 3980083 110-2.4-L/STOP Regal Manual Water Closet (Toilet) Flushometer, 2.4 gpf, Top Spud, No Control Stop
Details
Sloan Regal exposed-style manual water closet (toilet) flushometer. 2.4 gpf (gallons per flush) flush volume. Diaphragm-style valve. Top spud. Single flush. XL Sweat solder adjustable tailpiece adapter. Polished chrome finish on semi-red brass (for greater durability). No angle stop provided.
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- Cast Wall Flange with Set Screw
- No External Volume Adjustment to Ensure Water Conservation
- Use with your own compatible control (check) stop.
- Flush accuracy controlled by Para-Flo Technology
See Specs tab for complete list of certifications.
Measurement Diagram:
Specs
| Type: | Water Closet (Toilet) Flushometer, Manual |
| Brand: | Sloan |
| Model No.: | 3980083 (REGAL 110-2.4-L/STOP) |
| Primary Material: | Semi-Red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Manual (Handle) |
| Flush Volume: | 2.4 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" Diameter |
| Valve Type: | Diaphragm |
| Power Type: | None (Manual) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | N/A |
| Shipping Dimensions: | 14" Length x 12" Width x 6" Height |
| Shipping Weight: | 7 lbs |
| UPC / GTIN: | 671254394445 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty Compliances & Certifications ADA Compliant, BAA Compliant, BABAA Compliant, Made in the USA, UPC Certified |
Architectural Specifications:
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
