The Pinnacle P3-12S is a touchless, surface mount hand dryer. It is automatic, vandal resistant, dries hands in 12-15 seconds, and comes with a 10-year warranty. This model extends 4" from the wall when installed.
All new solid-state circuitry has completely eliminated all mechanical parts. Unit is activated by an infrared sensor when hands are placed in drying chamber. Dryer operates only when in use.
- Stainless Steel Cover and Drying Chamber
- Vandal Resistant
- Low Power Consumption
- ADA Compliant ONLY 4" DEEP

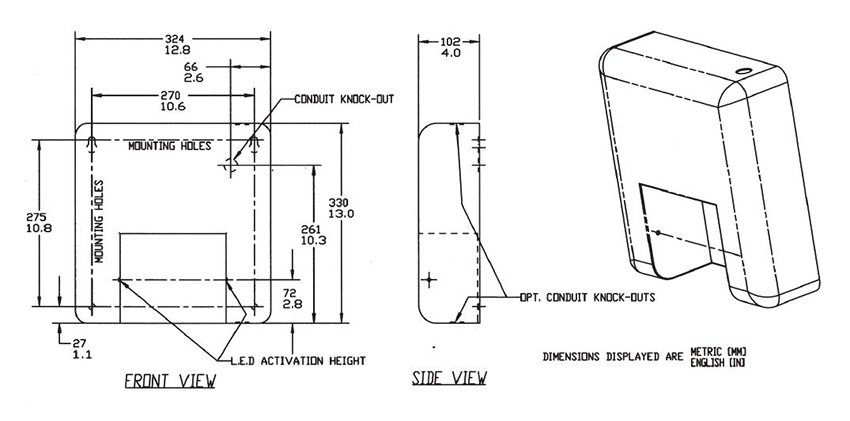

Measurement Diagram:
