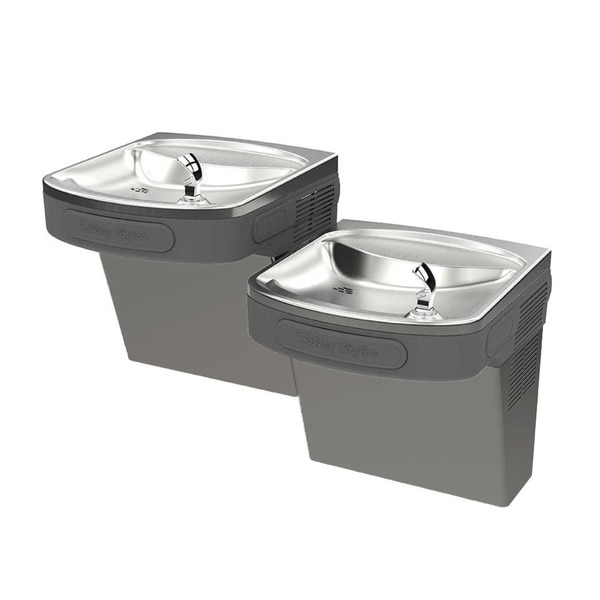

Halsey Taylor HTVZ8BLPV-WF Versatile Wall Mount Bi-Level ADA Cooler, Filtered, Platinum
HTVZ water coolers offer an easy-touch front push bar and features an exclusive Halsey Taylor Double Bubbler™. An extra deep basin designed with integrated drain to minimize splashing.
Barrier-free, ADA design meets adult ADA standards when properly installed.
Exclusive Double Bubbler provides a satisfying and more fulfilling drink of water.
Electronic bubbler push bars for easy activation.
Platinum Vinyl finish is durable and attractive.
Filter is certified to NSF 42 and 53 for lead, particulate, chlorine, taste and odor reduction. 1,500 gal. capacity.
This model comes with a Halsey Taylor 55898C filter which is good for 3000 gallons before it will need to be replaced.
It is also compatible with the Elkay 51300C filter which is also good for 3000 gallons before it will need to be replaced but can be bought in multi-packs for savings. And for a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

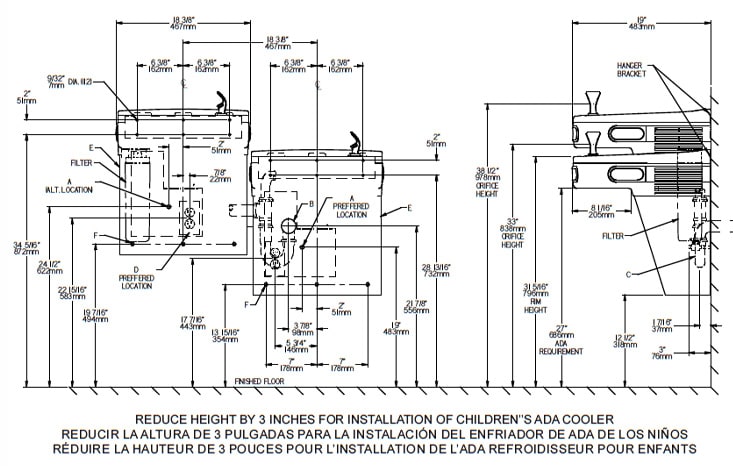

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Platinum) |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement Filter 55898C |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 25-5/16" Tall x 36-3/4" Wide x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 36-3/4" Height x 25-5/16" Width x 19" Length |
| Shipping Weight: | 72 lbs. |
| UPC / GTIN: | '094902043425 |
| Manufacturer Model No.: | HTVZ8BLPV-WF |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor Versatile Wall Mount Bi-Level ADA Cooler, Filtered 8 GPH Platinum Vinyl. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Filtered. Furnished with Double Bubbler ™. Electronic Front And Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
