The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation for bubbler with automatic 20-second shut-off timer on bottle filler.
- Touchless, sensor a Touchless, sensor activation (bottle filler) designed for easy use; vandal-resistant, push-button activation for the water cooler. ctivation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
- High-performance compressor & insulation greatly reduce energy consumption. GreenSpec listed & badged to demonstrate a commitment to sustainability.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Vandal-resistant, SmartFlow bubblers feature chrome-plated integral hood guard to prevent contamination, tampering and reduce water usage.
Certifications:

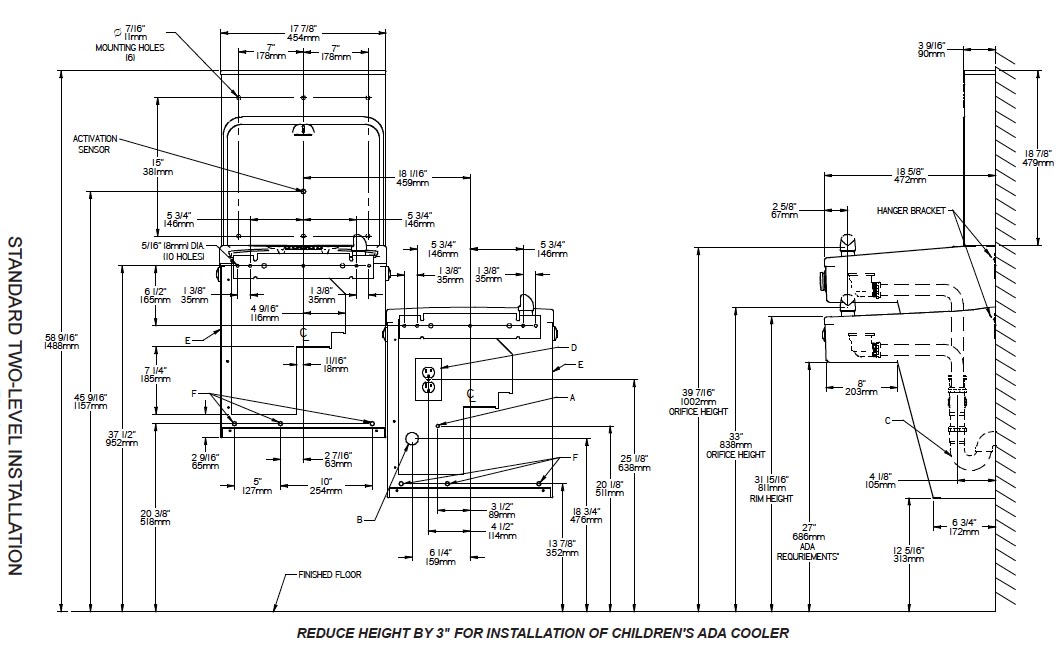

Measurement Diagram:
Architectural Specification:
Halsey Taylor HydroBoost® Bottle Filling Station& Bi-Level Vandal-Resistant Cooler High Efficiency Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Green Counter™, High Efficiency, Laminar Flow, Real Drain, Sanitary Sensor Activated, Vandal Resistant. Furnished with Vandal Resistant SmartFlow ™ bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.Unit shall be lead-free design which is certified to NSF/ANSI 61 &372 (lead free) and meets Federal and State low-lead requirements.
Warnings:
