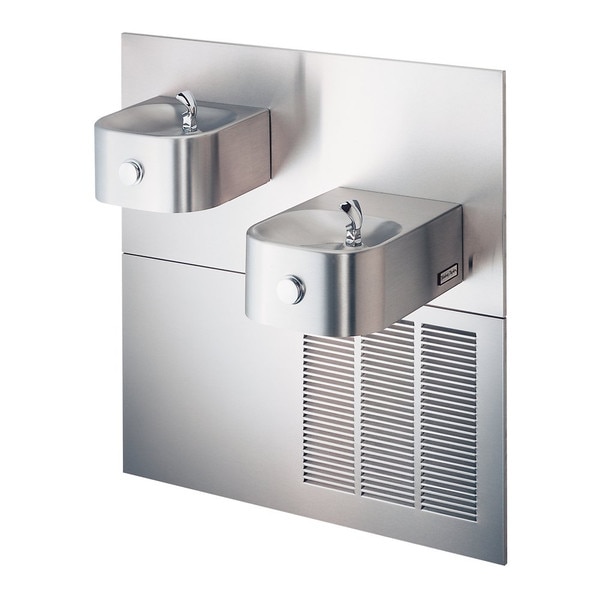

Halsey Taylor HRF-SER (8633083883) In-Wall Water Cooler Bi-Level Non-Filtered Refrigerated Stainless
Details
Contour™ architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.
Contoured fountain provides an attractive and safe product.
Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
Exclusive Double Bubbler provides a satisfying and more fulfilling drink of water.
Stainless steel finish is corrosion resistant and attractive.
Bottom cover plate conceals plumbing and internal components.
Certifications:

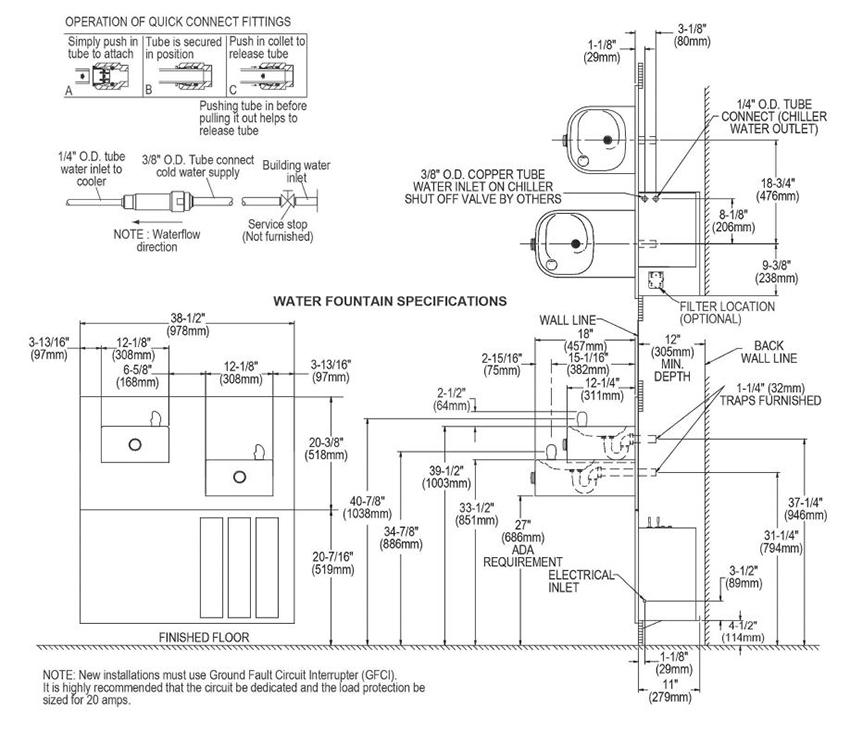

Measurement Diagram:
Specs
| Installation Location: | Indoor or Outdoor |
| Number of Stations: | Two (2) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 38-1/2" x 18-3/16" x 40-13/16" |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 42" x 4-1-1/2" x 46" |
| Shipping Weight: | 124 lbs. |
| Includes: | Fountain, Chiller, Mounting Frame |
| Manufacturer Model No.: | HRF-SER |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor® Contour™ Bi-Level Fountain Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Furnished with Double Bubbler ™. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
