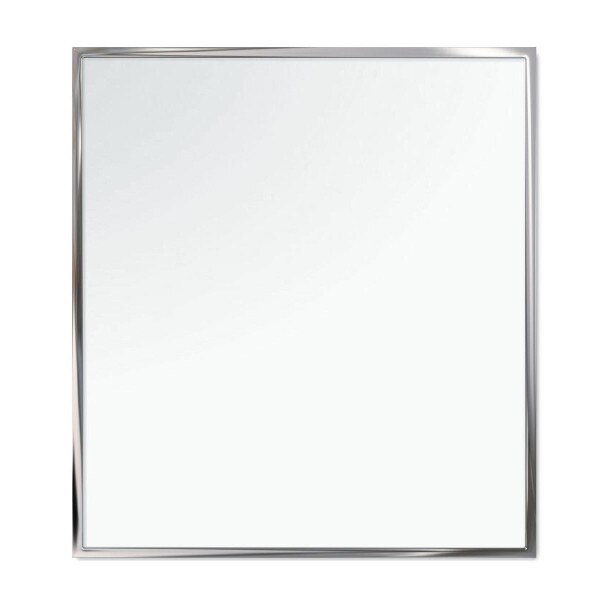

Gamco C-30X36 Channel-Frame Mirror - 30" Wide x 36" Tall
Frame - fabricated of 18-8 type 304 stainless steel with exposed surfaces having a #4 satin-finish. One piece roll formed angle is 5/8" x 5/8" (16 x 16mm) welded- frame. All welded construction. Corners are welded ground and polished smooth. Back Panel - fabricated of galvanized steel. Shock absorbing material is placed between mirror and back panel. Standard Mirror Glass - #1 quality, 1/4" (6mm) plate/float glass guaranteed against silver spoilage for 25 years. Meets and exceeds federal specifications DD-M-00411B & C. S. 27.
Measurement Diagram:
| Brand: | Gamco |
| Manufacturer Model No.: | C-30X36 |
| Mount: | Flat |
| Frame Material: | Stainless Steel, Polished Finish |
| Frame Type: | 430 Bright anneal stainless steel, One piece roll formed angle is 1/2" x 1/2" x 1/2" (13 x 13 x 13mm). Mitered corners. |
| Glazing: | Standard Mirror Glass - #1 quality, 1/4" (6mm) plate/float glass guaranteed against silver spoilage for 15 years. |
| Overall Dimensions: | 30" Wide x 36" Long x 5/8" Deep |
| Shipping Dimensions: | 40" Length x 34" Width x 4" Height |
| Shipping Weight: | 59.4 lbs. |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | United States |
| Warranty: | Manufacturer's Warranty, 15 yrs. Against silver spoilage. |
| Additional Comments: | "2S" Tab Design. Note: Mirrors greater than 36" in width will have multiple hanger brackets with a typical 8" off each edge |
