Elkay Part 98544C IR Sensor Board & Mounting Hardware for EZH2O and Hydroboost
Details
 | IMPORTANT: This sensor is for the bottle filler portion of the units listed below. If you are looking for the pushbar sensor found in EZO and LZO series fountains, see Elkay part: 36028C. |
Sensor activation service kit for EZH2O and Hydroboost bottle filling stations.
For use in the following models:
> EZS8WSLK, EZSTL8WSLK, EZS8WSSK, EZSTL8WSSK
> EZO8WSLK, EZOTL8WSLK, EZO8WSSK, EZOTL8WSSK, EZWSSM
> LZS8WSLK, LZSTL8WSLK, LZS8WSSK, LZSTL8WSSK
> LZO8WSLK, LZOTL8WSLK, LZO8WSSK, LZOTL8WSSK, LZWSSM
> HTHB-HACDPV-NF, HTHB-HACDPV-WF
> HTHB-HAC8PV-NF, HTHB-HAC8PV-WF
> HTHB-HACG8PV-NF, HTHB-HACG8PV-WF
> HTHB-HACDBLPV-NF, HTHB-HACDBLPV-WF
> HTHB-HAC8BLPV-NF, HTHB-HAC8BLPV-WF
> HTHB-HACG8BLPV-NF, HTHB-HACG8BLPV-WF
Works in 110-120V as well as 220-240V bottle fillers.
Does *not* work in "Enhanced" EZH2O bottle filling stations. For enhanced bottle fillers with serial numbers BELOW 190424189 see LKP-1000002434 sensor kit. For enhanced model serial numbers ABOVE 190424189 see LKP-1000005219
Specs
| Brand: | Elkay |
| Manufacturer Model No.: | 98544C |
| Type: | Sensor Repair Kit |
| Compatibility: | EZS8WSLK, EZS8WSSK, EZSTL8WSLK, EZSTL8WSSK, LZS8WSLK, LZS8WSSK, LZSTL8WSLK, LZSTL8WSSK, HTHB-HAC8BLPV-NF, HTHB-HAC8BLPV-WF, HTHB-HAC8PV-NF, HTHB-HAC8PV-WF, HTHB-HACDBLPV-NF, HTHB-HACDBLPV-WF, HTHB-HACDPV-NF, HTHB-HACDPV-WF, HTHB-HACG8BLPV-NF, HTHB-HACG8BLPV-WF, HTHB-HACG8PV-NF, HTHB-HACG8PV-WF |

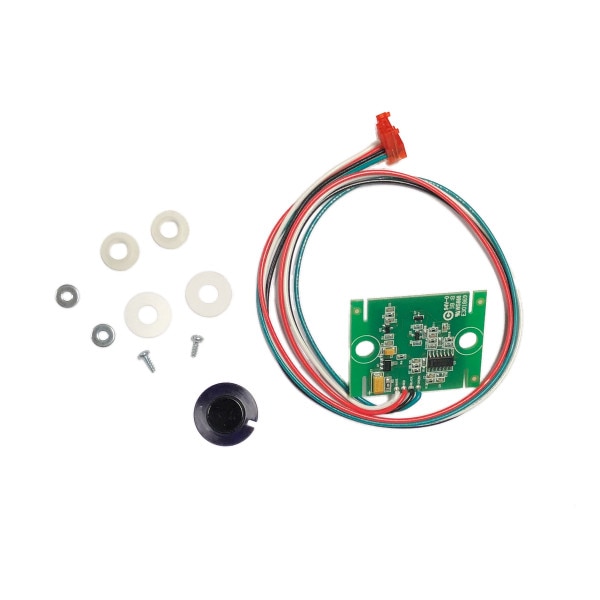

| Included: | One (1) infrared sensor control board One (1) senor lens Two (2) nylon spacers Two (2) Nylon washers Two (2) metal washers Two (2) mounting screws |
| Overall Dimensions: | Not published |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lbs. |
| UPC / GTIN: | 94902612959 |
| Country of Manufacture: | USA |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Videos
How to change the sensor on an EZH2O Bottle Filling Station
How to replace the IR Sensor on an Elkay EZH2O bottle filler (Standard or Enhanced). The job takes less than 10 minutes and requires minimal experience.
TOOLS you will need:
- 5/8" Allen Wrench
- 3/8" Socket Wrench
- #0 (PH0) Philips Head Screwdriver
- Work gloves (to protect against sharp edges)
PARTS:
> For standard EZH20 Bottle Fillers use
LKP-98544C
> For enhanced EZH2O Bottle Fillers use
LKP-100002434
