Elkay Part 1000004574 Replacement Solenoid Valve Kit for 220-240V Bottle Fillers
 | IMPORTANT: This part is for 220-240V bottle fillers only and is intended for export use. For the US version (110-120V), see Elkay Part 1000004573. |
When your bottle filler stops dispensing water, and you have determined it's not a faulty sensor, then this is the next most likely solution. Note that this affects only the bottle filler portion of your water dispenser. There is a different one for the drinking fountain (if present).

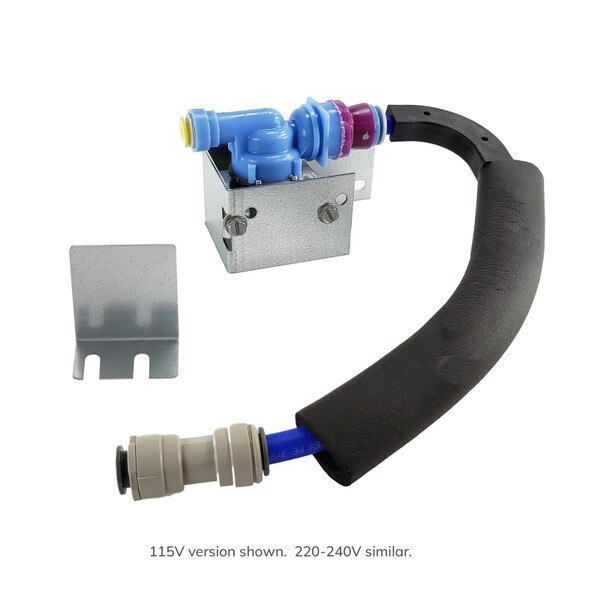

This kit includes the following:
1000004307 Solenoid Valve
28905C Solenoid Bracket
28936C Solenoid Shield
1000004565 Flow Bend Clip - 3/8" (Black)
56307C Poly Tube 3/8" x 10" Long
101461040560 Insulation Tube
70288C Screw (#10 x .37 HHSM)
(For use with 220-240V 50/60Hz EZ / LZ / HAC / EMABF / LMABF models)
For the 110-120V version of this part, see Elkay Part 1000004573.
| Brand: | Elkay |
| Manufacturer Model No.: | 1000004574 |
| Type: | Solenoid Valve (For BOTTLE FILLER) |
| Compatibility: | Elkay EZH2O models beginning with EZ / LZ / EMAB / LMAB Halsey Taylor Hydroboost products beginning with HTHB-HAC |
| Included: | 1000004307 Solenoid Valve 28905C Solenoid Bracket 28936C Solenoid Shield 1000004565 Flow Bend Clip - 3/8" (Black) 56307C Poly Tube 3/8" x 10" Long 101461040560 Insulation Tube 70288C Screw (#10 x .37 HHSM) |
| Overall Dimensions: | Not applicable |
| Shipping DImensions: | 8" Length x 8" Width x 8" Height |
| Shipping Weight: | 1 lb. |
| UPC / GTIN: | 094902117331 |
| Country of Manufacture: | United States |
| Additional Comments: | This product is intended for use overseas (Europe, etc) where standard voltage is 230V/50Hz. |
