Elkay LZWSMDK In-Wall, EZH2O Bottle Filling Station (Non-refrigerated,Filtered)

(0) No Reviews yet

Ships in 7 business days from manufacturer.

IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses.

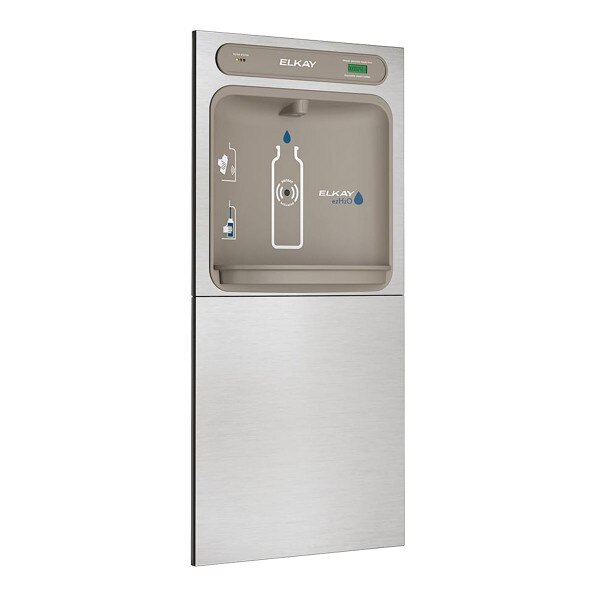

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

  • Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
  • Touchless, sensor activation (bottle filler) designed for easy use.
  • Fill rate is 1.5 GPM.
  • Visual filter monitor with LED filter status indicator for when filter change is necessary.
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.

This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.



Measurement Diagram:

Installation Location: Indoor
Number of Stations: One (1) EZH2O bottle filling station
Mount: Wall / Recessed
Operation: Automatic (Infra-red sensor)
Basin(s): Antimicrobial ABS alcove with Stainless Steel Grate
Cabinet(s): Stainless Steel, Brushed Finish
Bubbler(s): None
Cooled: No
Filtered: Yes | Replacement filter 51300C
Power: 110-120V (Standard)
Status Display: Filter Status Indicator (Green/Yellow/Red)
Green Ticker Display (Counts bottles saved from waste)
Overall Dimensions: 40-13/16" Tall x 19-3/4" Wide x 3-1/2" Deep
Rough-in: 37-3/4" Tall x 18-3/4" Wide x 12" Deep
Shipping Dimensions: Box 1: 28-1/4" Length x 24-1/4" Width x 12-1/2" Height
Box 2: 23-1/4" Length x 4-1/2" Width x 44-1/2" Height
Box 3: 14" Length x 13-11/16" Width x 4-3/16" Height
Shipping Weight: 33 lbs.
UPC / GTIN: '094902586977
Manufacturer Model No.: LZWSMDK
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited


California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay ezH2O® In-Wall Bottle Filling Station with Mounting Frame, Filtered Non-Refrigerated Stainless. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
