IMPORTANT: This is a RETROFIT KIT. It does NOT include the water fountain or chiller.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Designed to retrofit existing bi-level refrigerated SwirlFlo fountains.
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer. SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface. Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.
INCLUDES: Bottle Filling Station, Front Panels, Filter Assembly, and Mounting Frame.
NOTE: This is a retro-fit kit. Water Fountain and chiller are NOT included.
- Touchless, sensor activation (bottle filler) designed to retrofit with an existing refrigerated push-button fountain.
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water.
Certifications:

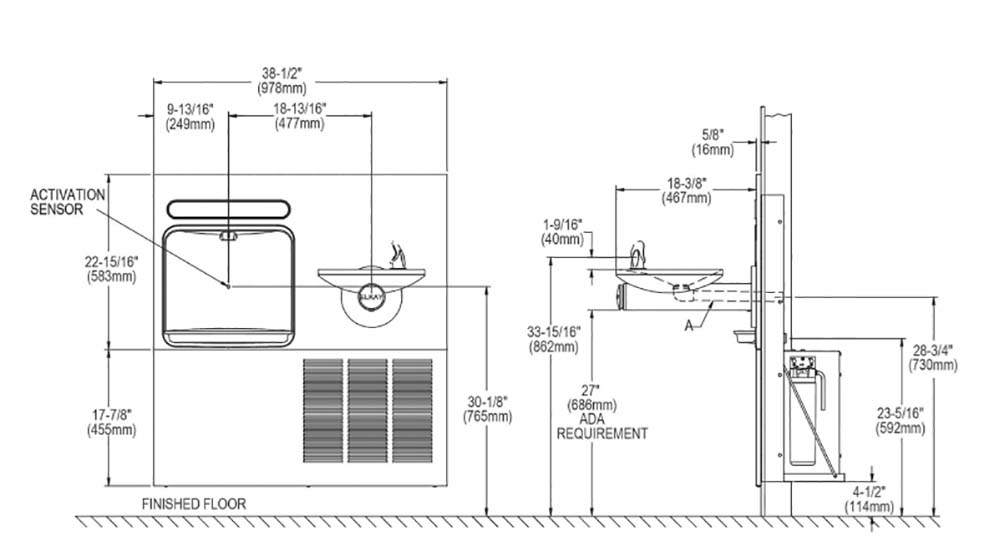

Measurement Diagram:
Architectural Specification:
Elkay ezH2O® Retrofit Bottle Filling Station with SwirlFlo® Fountain, Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
Warnings:
