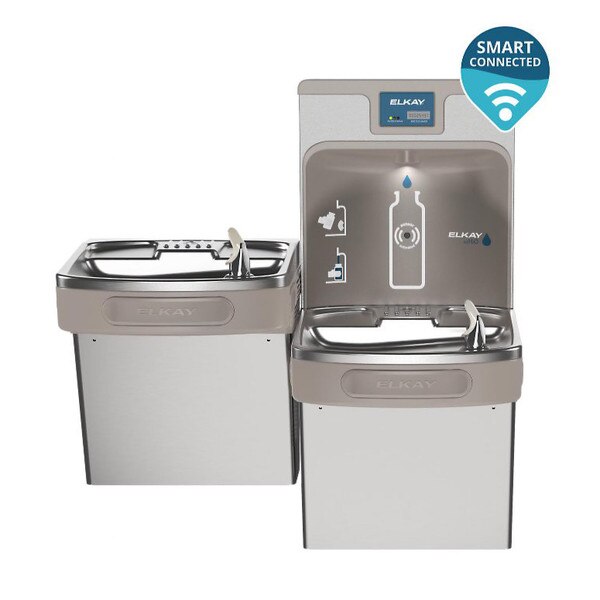

Elkay LZSTL8WSSP-W1 Cloud Connected Enhanced EZH2O & Bi-level ADA Fountain, St. Steel
Details
NEW! Cloud Connected Dashboard allows facility managers to monitor filter status and other metrics remotely, centrally, for easier planning and allocation of resources. |
With today's emphasis on the health benefits of drinking lots of clean, filtered water, more and more people are engaging with Elkay's ezH2O products. The increase in demand (which is a good thing), means facility managers will need to be able to keep up with maintenance on a growing fleet of water fountains and bottle fillers.
Elkay has anticipated this and has introduced a new cloud based dashboard, which allows the monitoring of filter status and water usage, and even allows remote scheduling of flushing events to keep lines cleaner (which helps prevent waterborne illness).*
In addition, this fountain and bottle filler features a new quick access, flip down, cabinet which allows filter changes in about a minute.

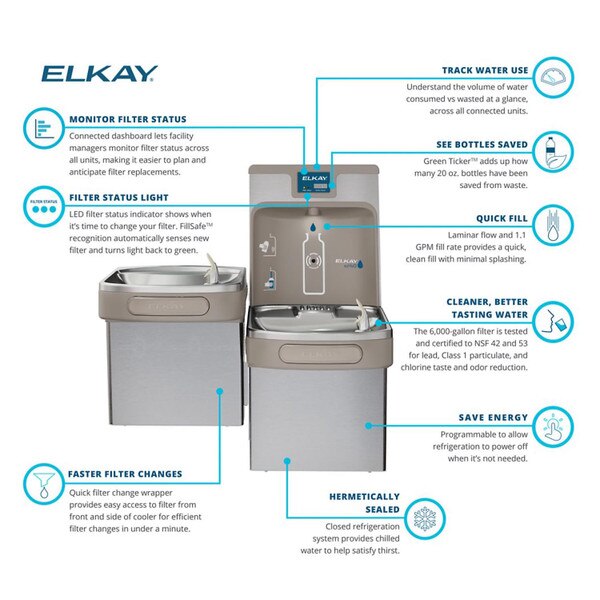

- Connected dashboard lets facility managers monitor filter status across all units, making it easier to plan and anticipate filter replacements.
- Schedule flushing events from your desktop, with automatic record-keeping to ensure compliance and safety.
- Save time and effort by viewing Bottles Saved across all units in the building or campus.
- Understand the volume of water consumed vs wasted at a glance, across all connected units.
- Quick filter change wrapper provides easy access to filter from front and side of cooler for convenient and efficient filter change in under a minute.
- FillSafe® recognition automatically recognizes new filter and updates LED light back to green.
* Note: Connection requires use of Zurn plumbSMART gateway (purchased separately) installed within range (typically 1000ft) with internet connectivity. Only one gateway is needed for an unlimited number of Elkay ezH2O Enhanced Bottle Fillers.
Certifications:
Specs
Installation Location: | Indoor |
Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
Mount: | Wall / Surface |
Operation: | One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains |
Basin(s): | Stainless Steel| Brushed Finish |
Cabinet(s): | Stainless Steel| Brushed Finish |
Bubbler(s): | Flexi-Guard Safety Bubbler |
Cooled: | Yes |
Filtered: | Yes | Replacement filter 51300C |
Power: | 110-120V (Standard) |
Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
Overall Dimensions: | 44-1/8" Tall x 36-3/4" Wide x 19" Deep |
Rough-in: | Not applicable |
Shipping Dimensions: | 40" Height x 21" Width x 21" Length |
Shipping Weight: | 98 lbs. |
UPC / GTIN: | 94902036014 |
Manufacturer Model No.: | LZSTL8WSSP-W1 |
Included: | Ships in 1 box: Bottle Filler, Water Cooler, Filter |
Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Additional Comments: | Fill rate on bottle filler is 1.1GPH. This model is "cloud connected" which allows remote monitoring and maintenance with use of Zurn plumbSMART gateway (purchased separately). |
Warnings:
California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Enhanced Connected ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler Refrigerated Stainless High Capacity Lead Reduction Quick Filter Change. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Automatic Filter Status Reset, Cloud Connected Device, Energy Savings, Chilled Water, FillSafe™, Filtered, Green Ticker™, Hands Free, Laminar Flow, New Offering, Visual Filter Monitor, Real Drain, Quick Filter Change. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
