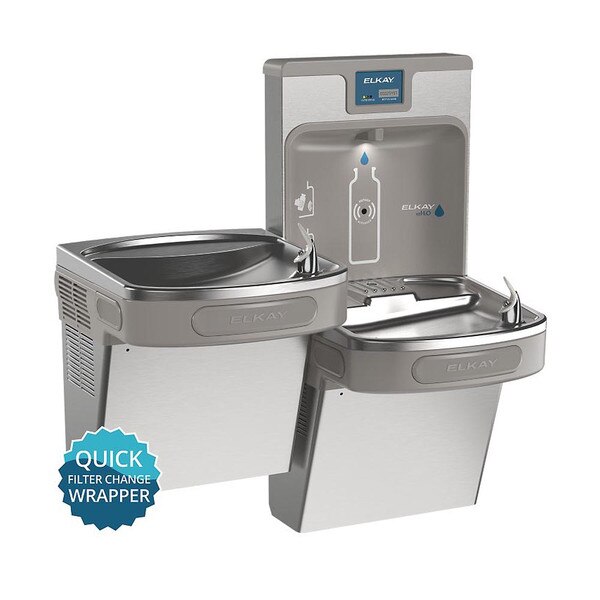

Elkay LZSTL8WSSP-PF Wall Mount, Filtered, Bi-Level Refrigerated Enhanced EZH2O BF & ADA Fountain, PFOA/PFOS Reduction
 | PFOA/PFOS Reduction Filter and special Quick Filter Change cabinet included. |

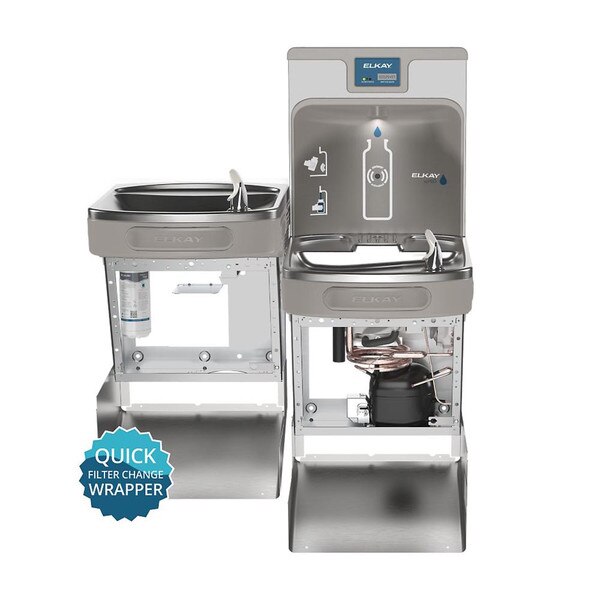

This version of the LZSTL8WSSP is designed specifically for use with the 71300C filter which is certified to NSF/ANSI 42 and 53 to reduce PFOA and PFOS; prevalent PFAS chemicals. It also contains a newly designed quick filter change wrapper which greatly increases the convenience of filter maintenance. Cabinet flips forward and down to expose the filter with no crawling underneath to release cabinet. See the Elkay Video.

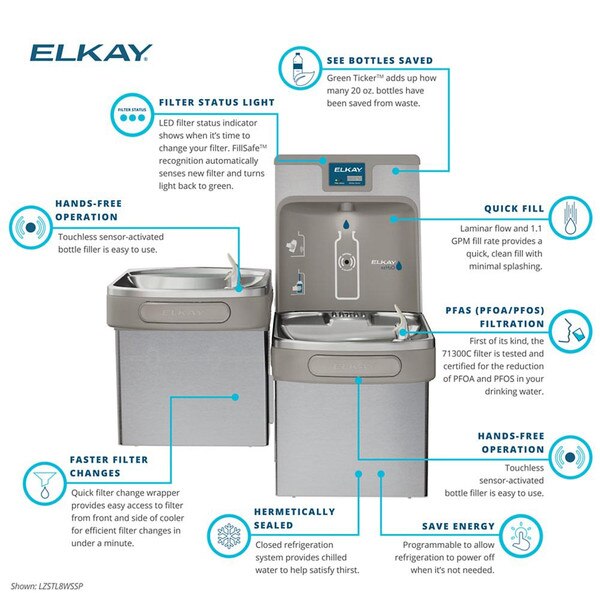

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete bi-level cooler and bottle filling station in a consolidated space saving ADA compliant design. Integrated look combines our Green Ticker™ and FillSafe™ filter status indicator.
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator. FillSafe™ recognition automatically recognizes new filter and updates LED light back to green.

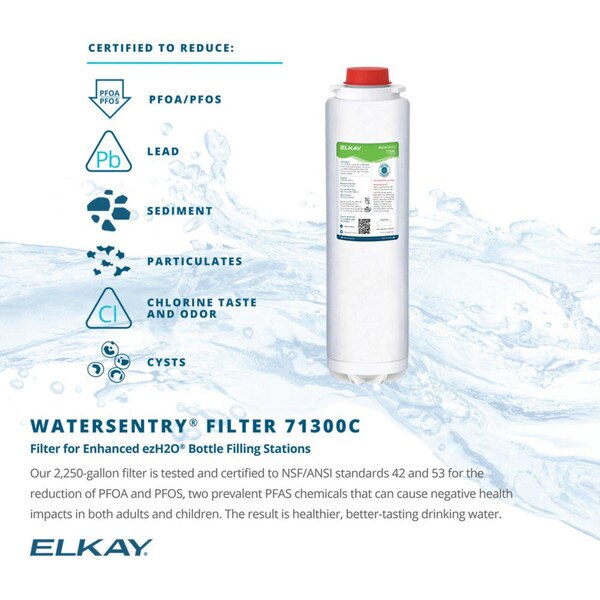

- The 2250-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction as well as PFOAs.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Energy-saving feature, allowing for the refrigeration to be powered off when not in use.
Certifications:
Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (1) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler, and one (1) push button drinking fountain |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish, Quick Filter Change Version |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 71300C (PFOA/PFOS) 2250 Gal Capacity |
| Power: | 110-120V (Standard) |
| Status Display: | FillSafe™ Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 44-1/8" Tall x 36-3/4" Wide x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 38" Height x 21" Width x 21" Length |
| Shipping Weight: | 98 lbs. |
| UPC / GTIN: | 094902158457 |
| Manufacturer Model No.: | LZSTL8WSSP-PF |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
| Additional Comments: | NEW Quick Filter Change Cabinet included. |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Enhanced Bi-level ezH2O Bottle Filling Station & Single ADA Cooler Refrigerated Stainless PFOA/PFOS Reduction Quick Filter Change. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor, Quick Filter Change. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
