Elkay LZO8S Hands-Free Water Cooler Wall Mount, ADA, Filtered Refrigerated, Stainless

The Elkay EZ models are Elkay's most popular water cooler series. This model offers sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain. Electronic Sensor Operation: On-Off solenoid valve is actuated by an infra-red lightbeam sensor. When lightbeam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed.

• Touchless, sensor-activated units are designed for easy use and improved hygiene.

• Attractive, contemporary design matches modern architecture.

• Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.

• Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.

• Filtered units display filter status for easy notification of expiration.

• Stainless steel finish is corrosion resistant and attractive.

---

This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.

---

Certifications:



---

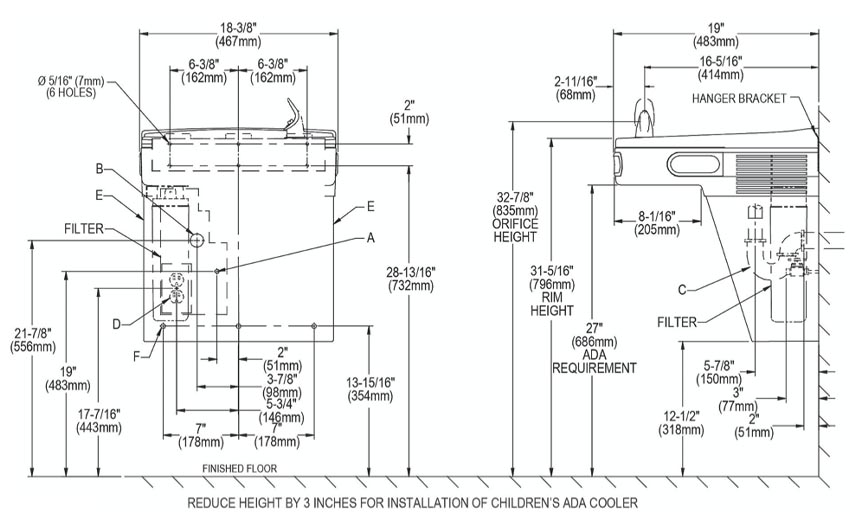

Measurement Diagram:

---
